Connector Identification

Select connector illustration from table. See CONNECTOR FACES table.

CONNECTOR FACES

Connector Face	See Illustration
Brake Pump	Fig 1
Control Pressure Switch	Fig 2
Electronic Brake Control Module (ECBM)	Fig 1
Engine To Dash 2-Way	Fig 1
Fluid Level Sensor	Fig 1
Over-Voltage Protection Relay	Fig 3
Over-Voltage Protection Relay Terminals	Fig 3
Pump Motor Relay	Fig 3
Pump Motor Relay Terminals	Fig 3
Reed Block	Fig 2 & Figure
Sensor Block	Fig 1 , Fig 2 & Figure
Sensor Block Ground Pin	Fig 2
Stop Lamp Switch	Fig 1 & Fig 2
Valve Block Connector	Fig 2
Wheel Speed Sensor	Fig 3

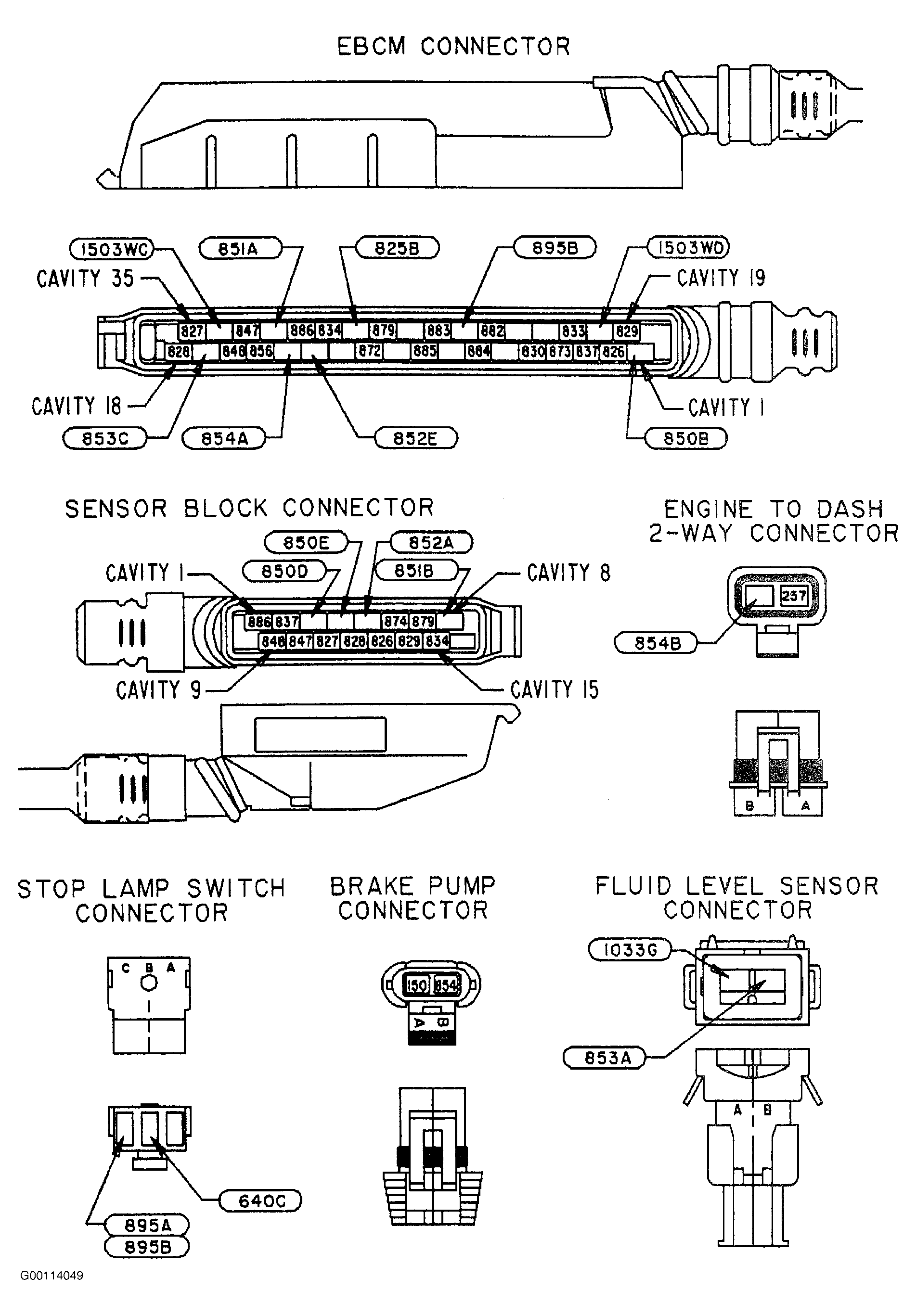

Fig 1: Identifying EBCM, Sensor Block, Engine To Dash 2-Way, Stop Lamp Switch, Brake Pump & Fluid Level Sensor Connector Faces

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Reed Block, Valve Block, Sensor Block, Sensor Block Ground Pin & Control Pressure Switch Connector Faces

Courtesy of GENERAL MOTORS CORP.

Fig 3: Locating Wheel Speed Sensor, Over-Voltage Protection Relay & Pump Motor Relay Connector Faces & Over-Voltage Protection & Pump Motor Relay Terminals

Courtesy of GENERAL MOTORS CORP.
