Wiring Diagrams

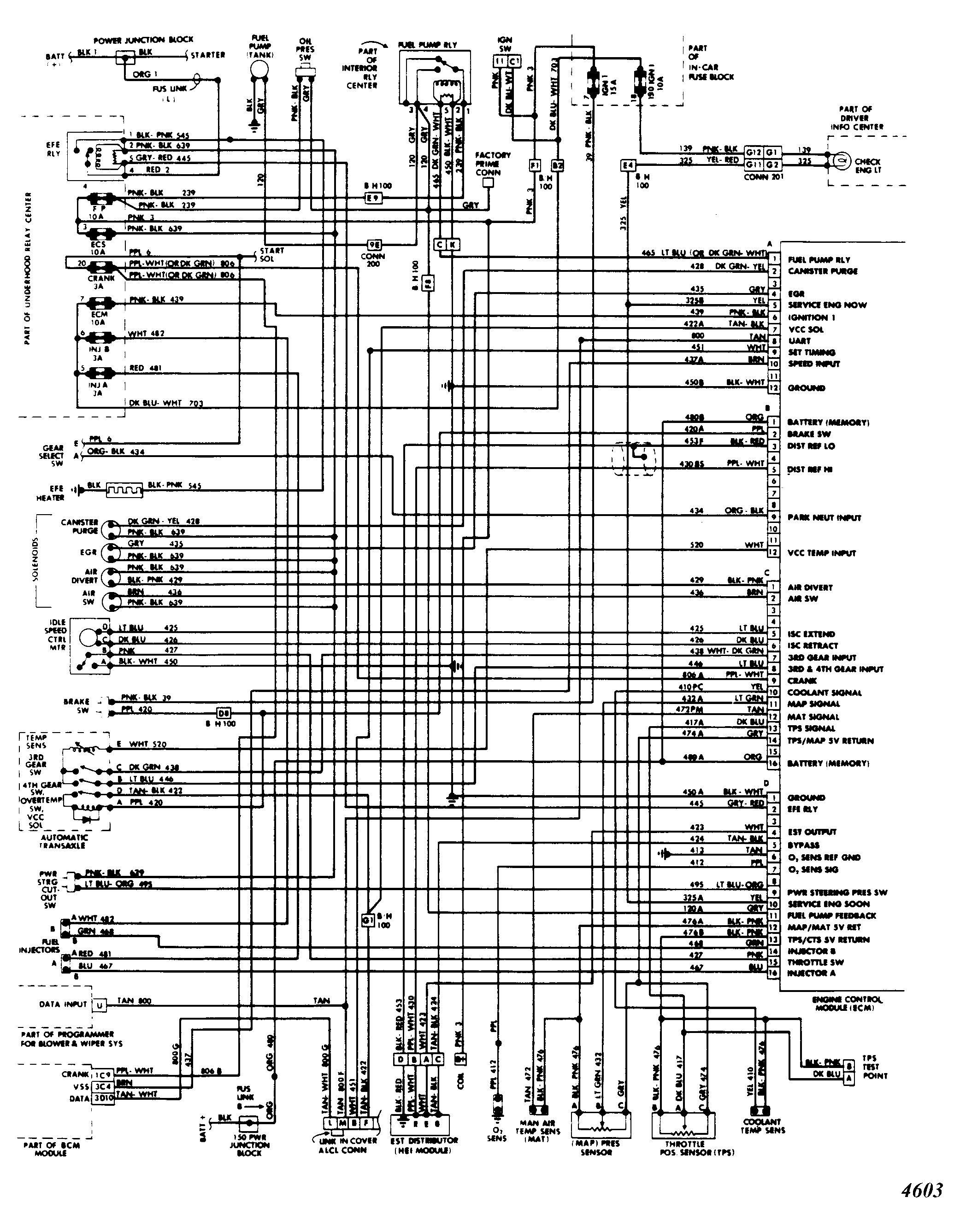

Fig 1: 1986 ECM Wiring Diagram for Eldorado & Seville

G4603

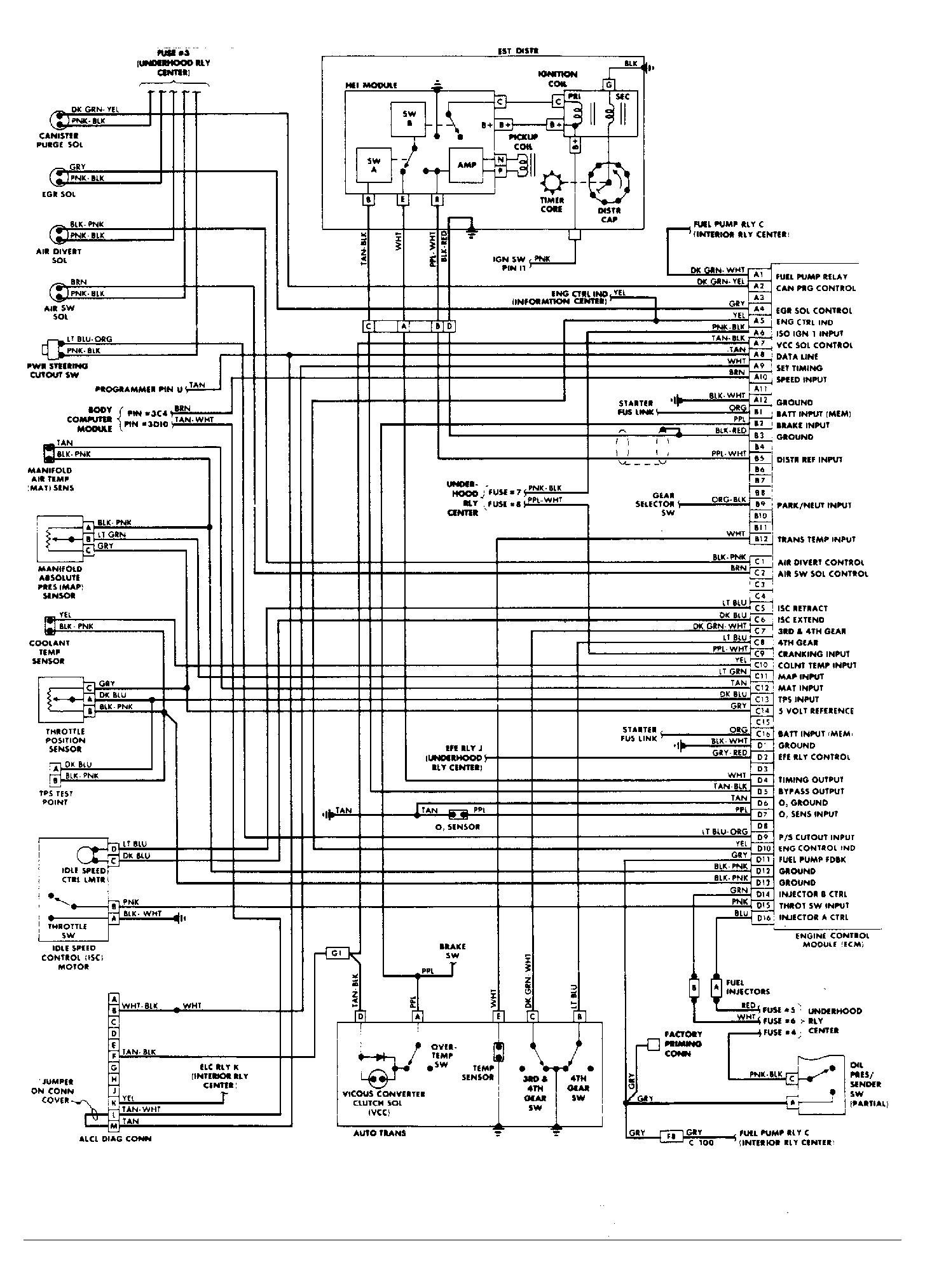

Fig 2: 1987 ECM Wiring Diagram for Eldorado & Seville

G7425
