Component Locations

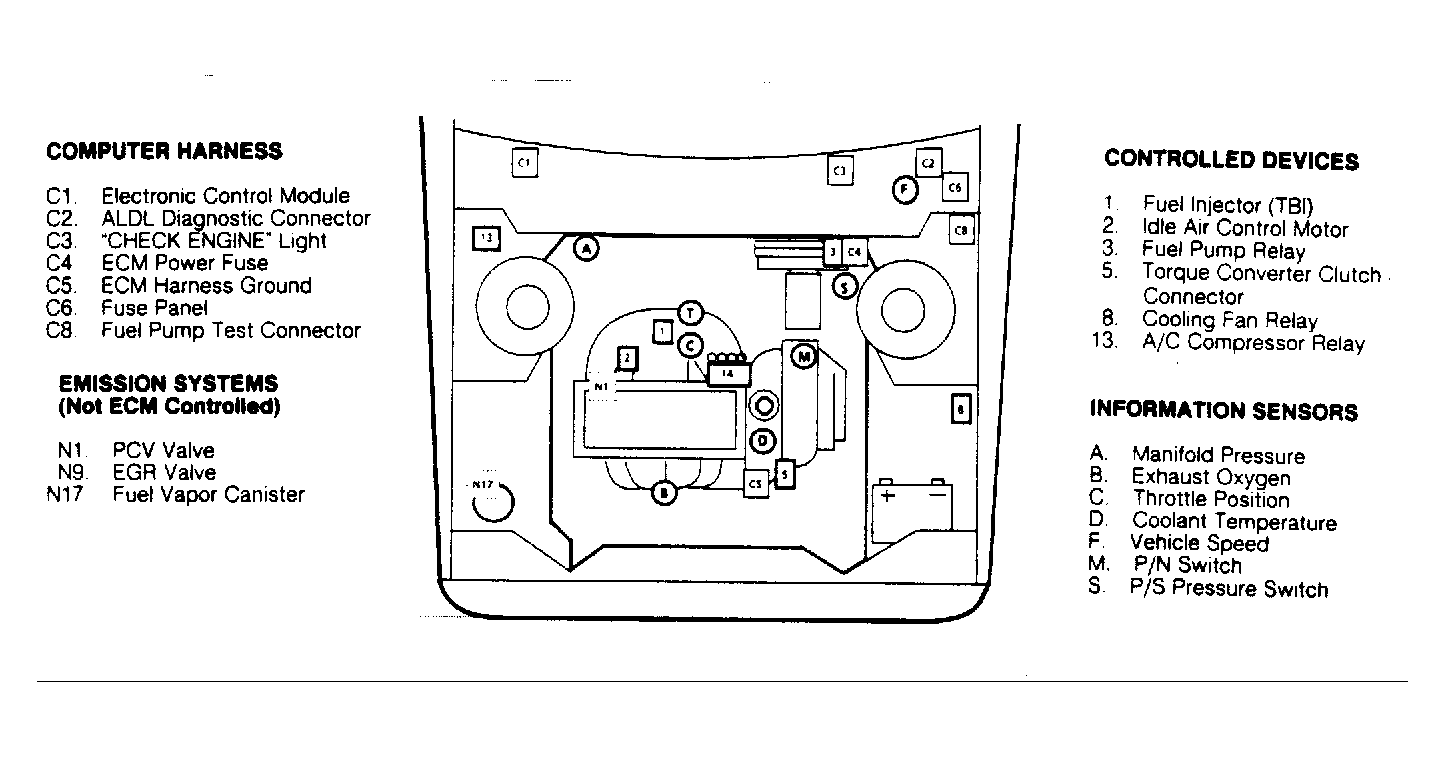

Fig 1: Component Locations (J Body)

G7092

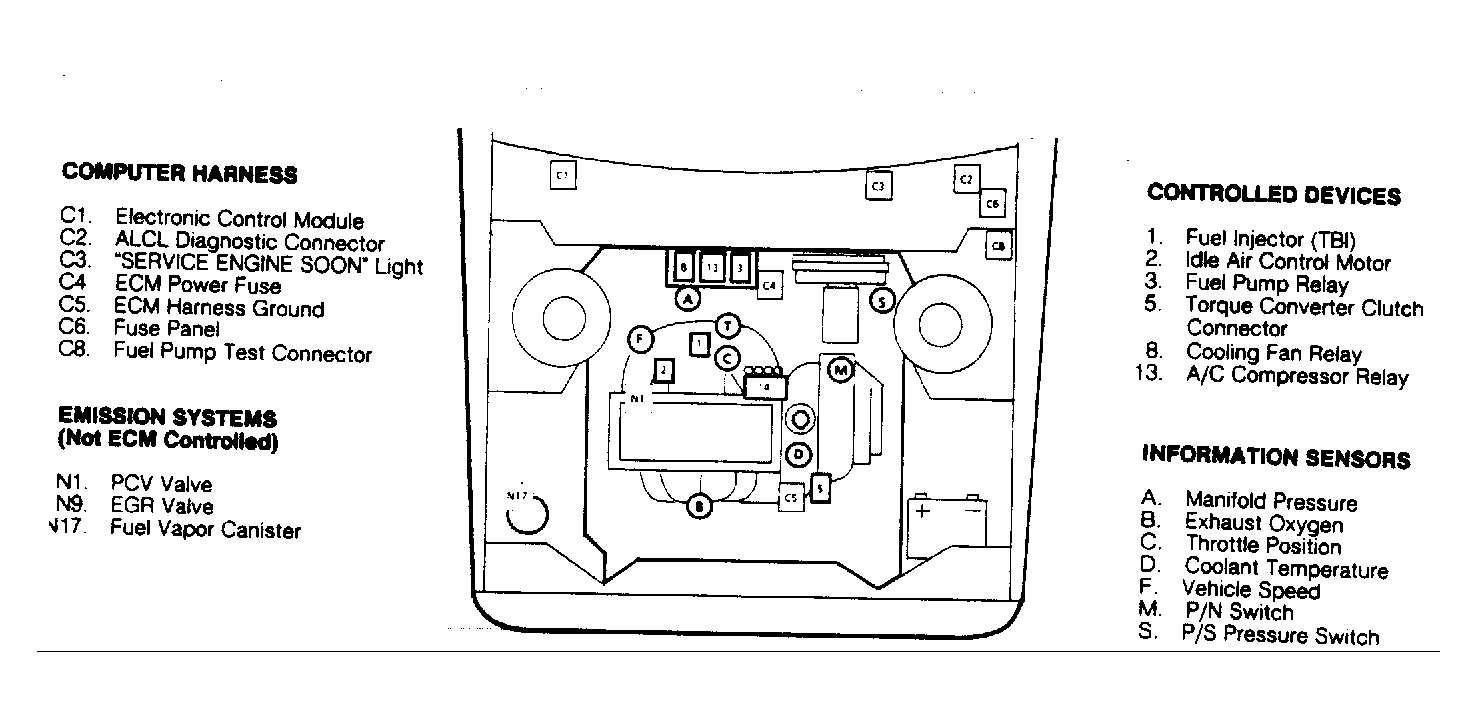

Fig 2: Component Locations (L Body)

G7093
