Speedometer Inoperative (Quartz Cluster)
Speedometer Inoperative (Quartz Cluster)

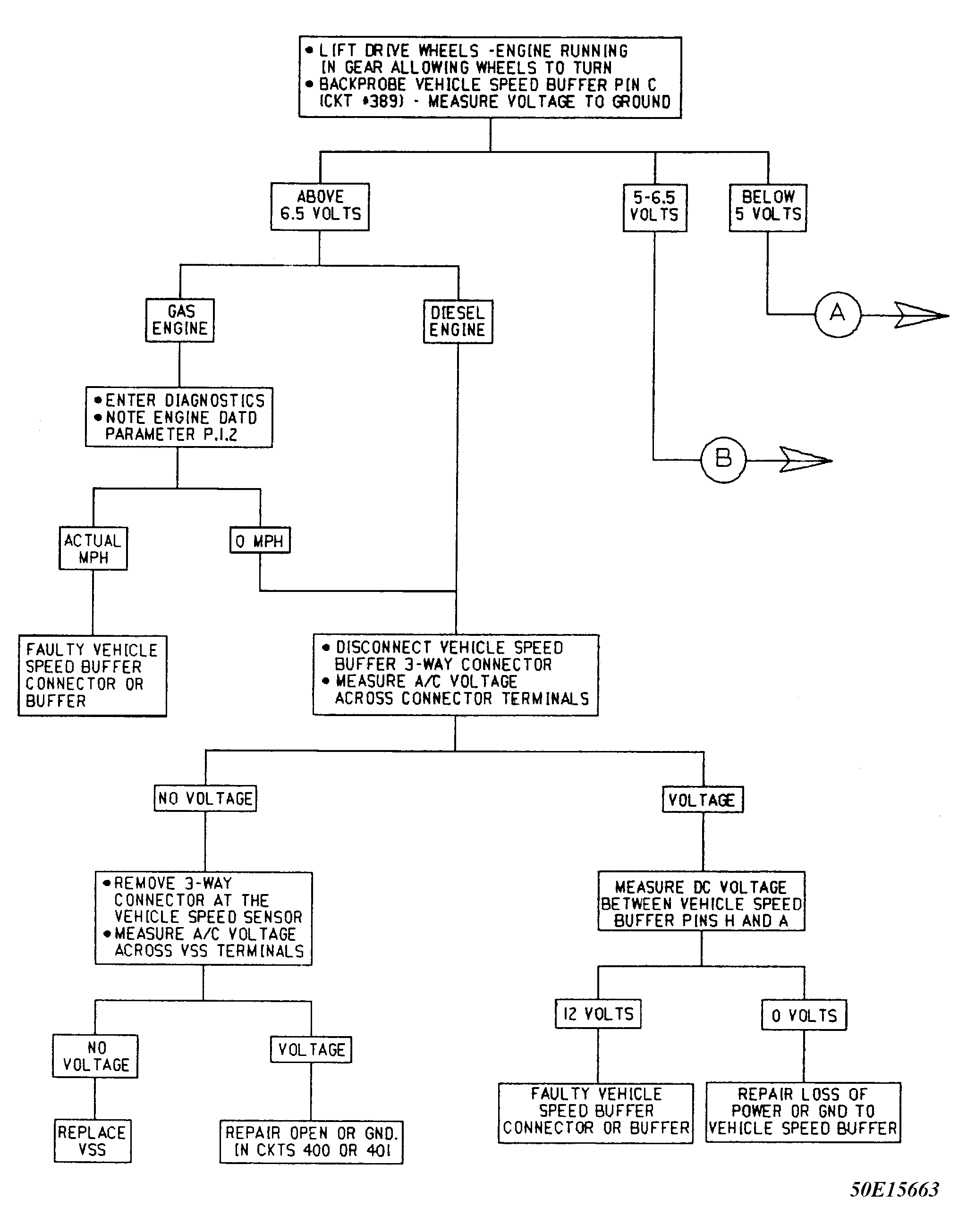

Fig 1: Speedometer Inoperative (Quartz Cluster) (1 of 2)

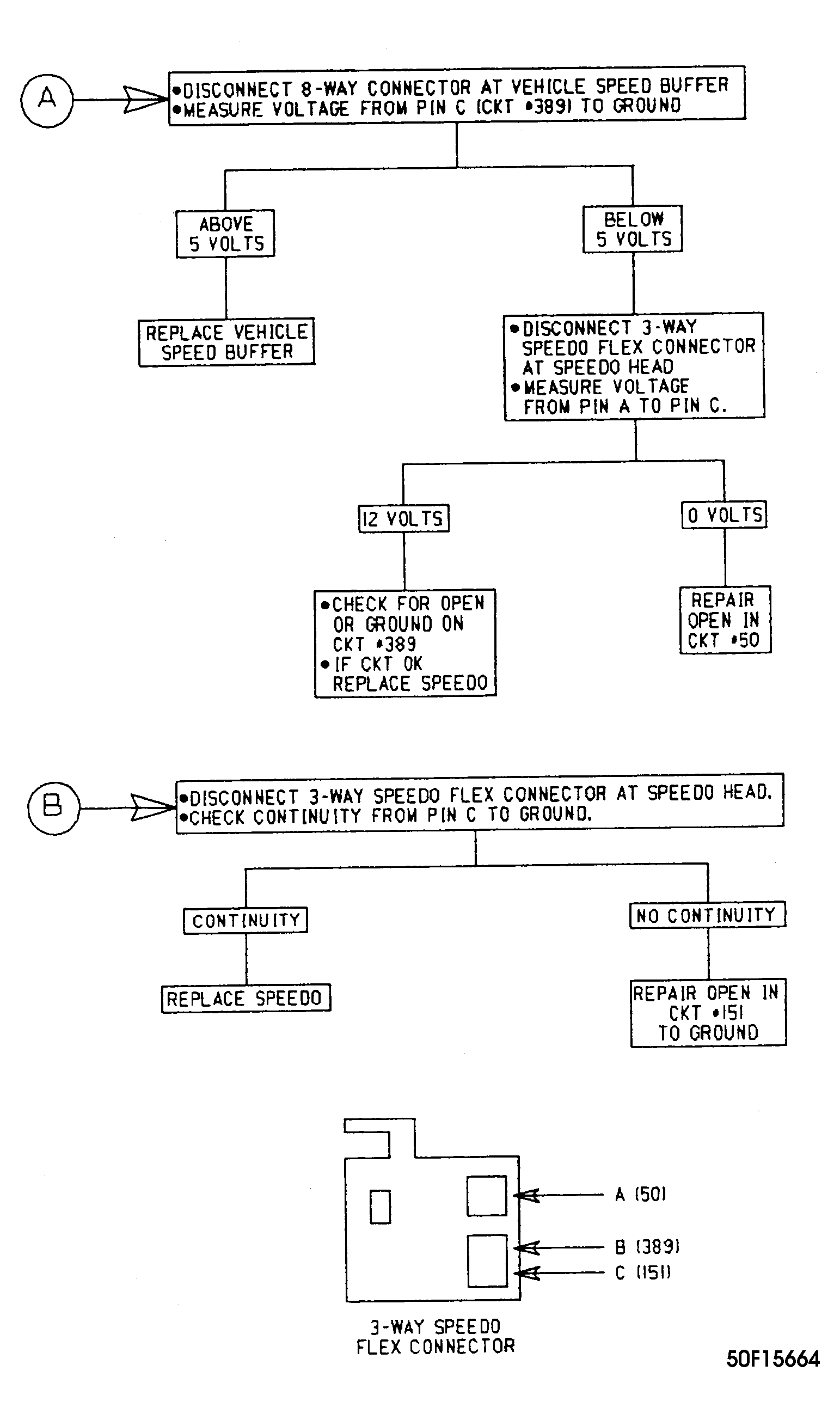

Fig 2: Speedometer Inoperative (Quartz Cluster) (2 of 2)
