Test C: Hydraulic System Performance Check

Perform hydraulic system performance check. See Fig 1 -Fig 5 . For pump motor circuit description, see Fig 6 .

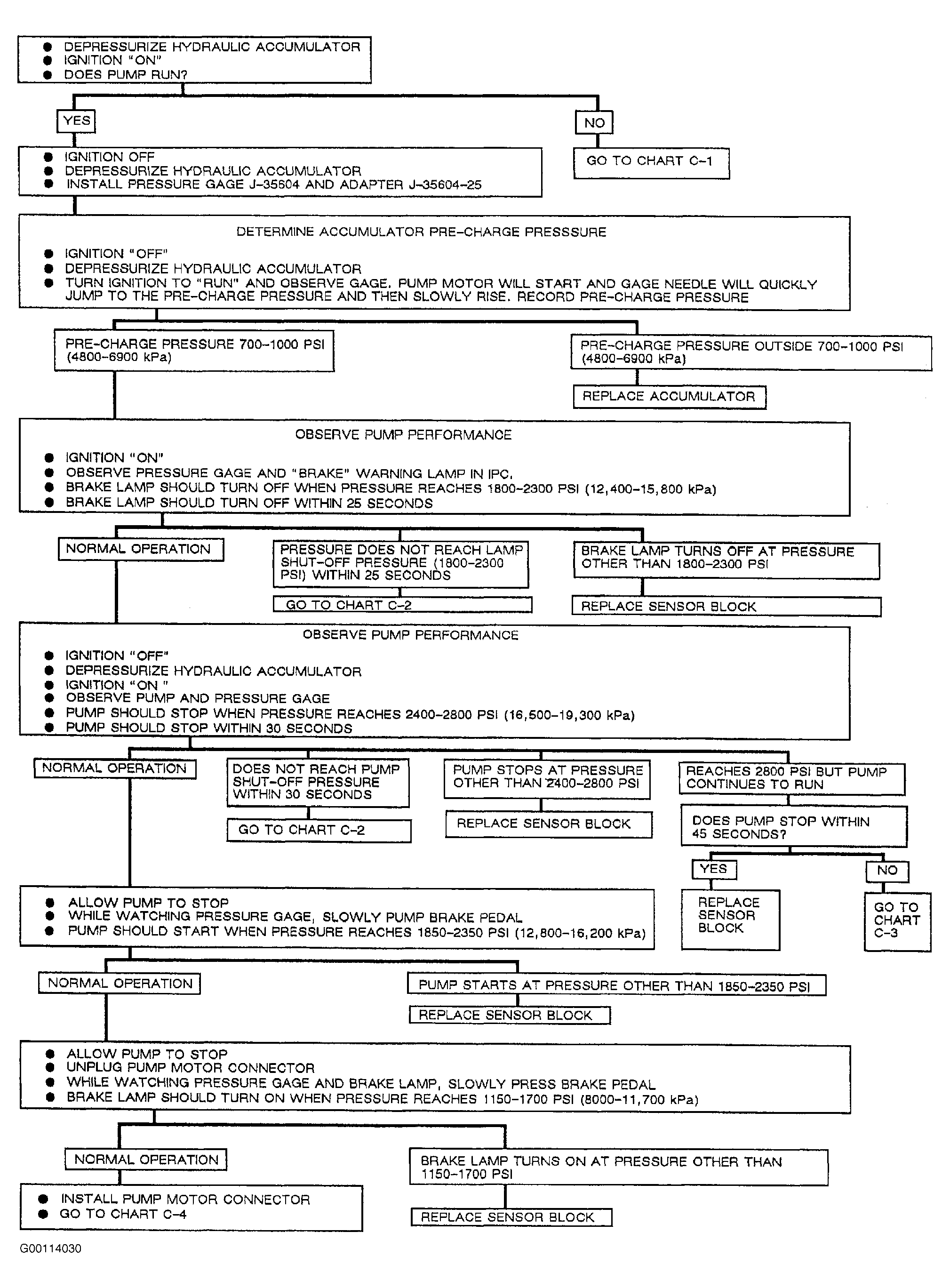

Fig 1: Chart C: Hydraulic System Performance Check Diagnostic Flow Chart

Courtesy of GENERAL MOTORS CORP.

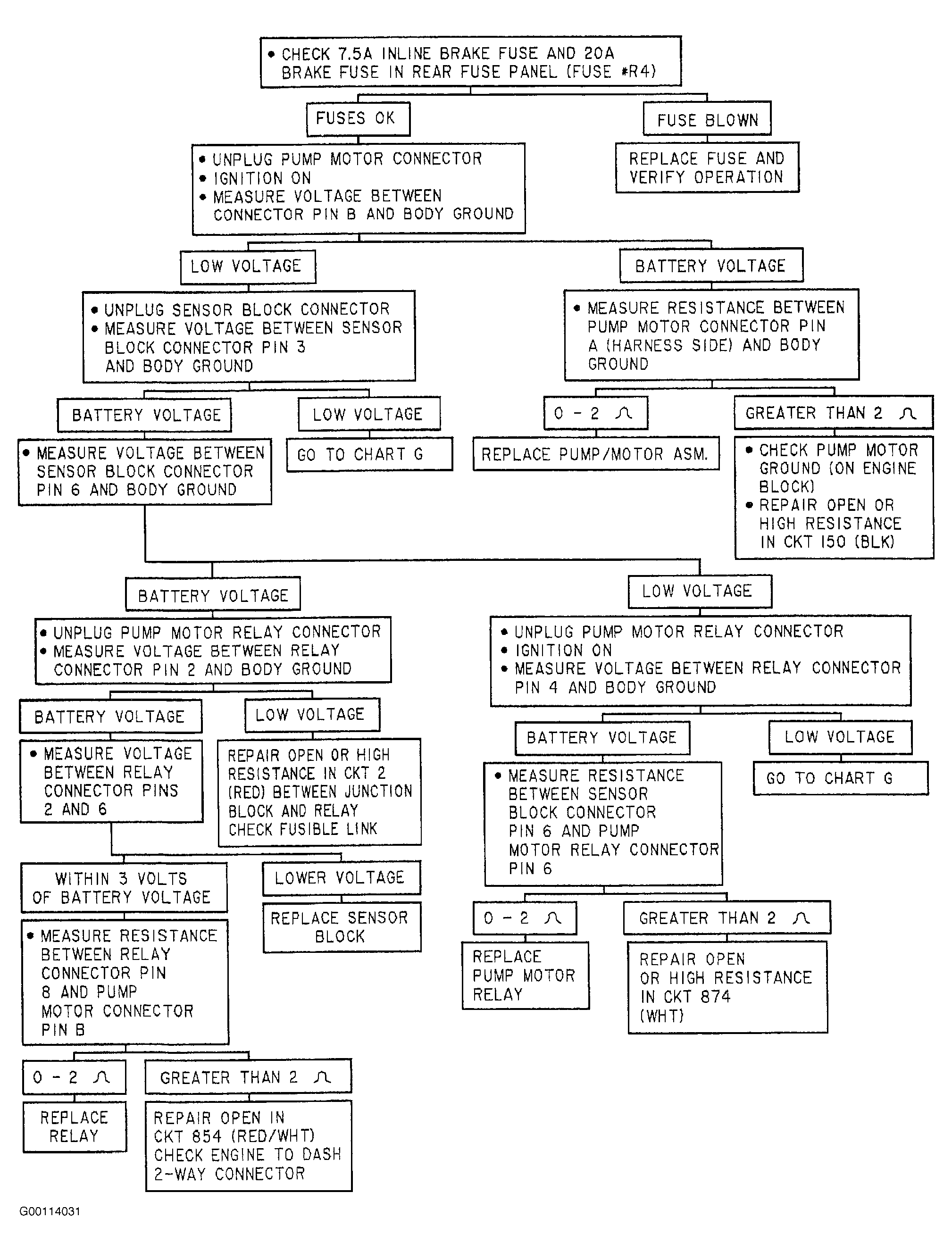

Fig 2: Chart C-1: No Power Assist/Pump Does Not Run Diagnostic Flow Chart

Courtesy of GENERAL MOTORS CORP.

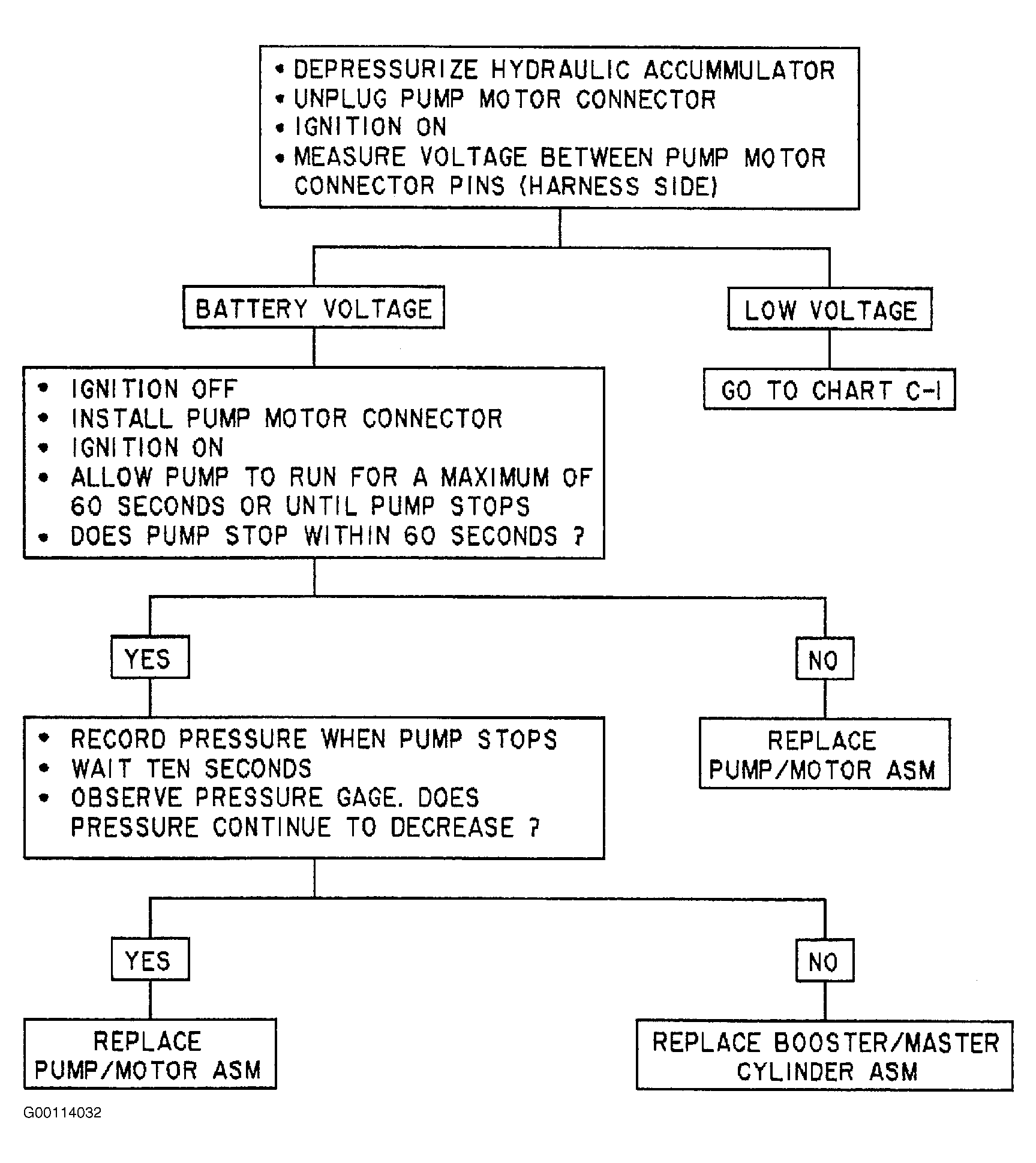

Fig 3: Chart C-2: Slow Pressure Build-Up Diagnostic flow Chart

Courtesy of GENERAL MOTORS CORP.

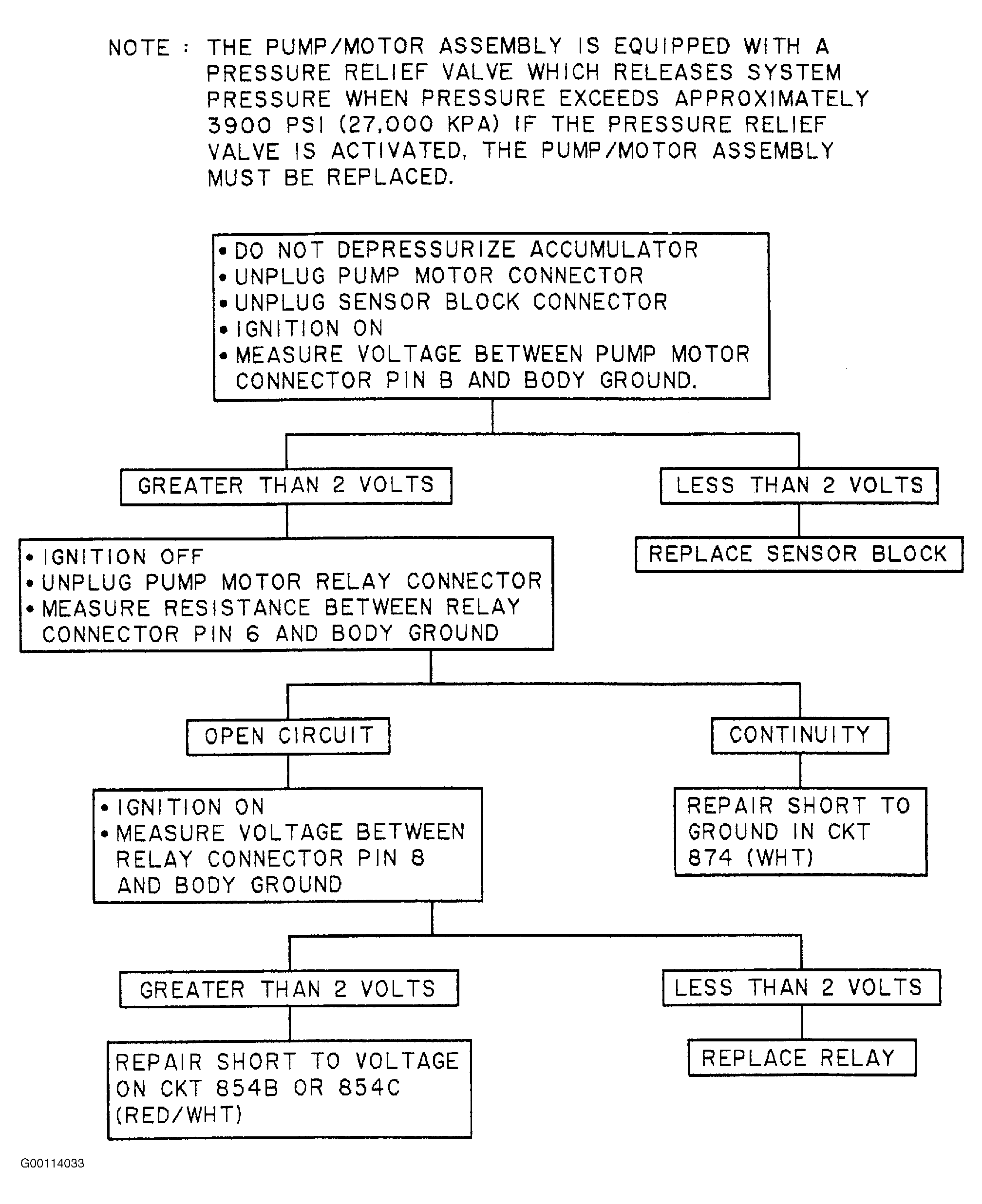

Fig 4: Chart C-3: Pump Runs Continuously Diagnostic Flow Chart

Courtesy of GENERAL MOTORS CORP.

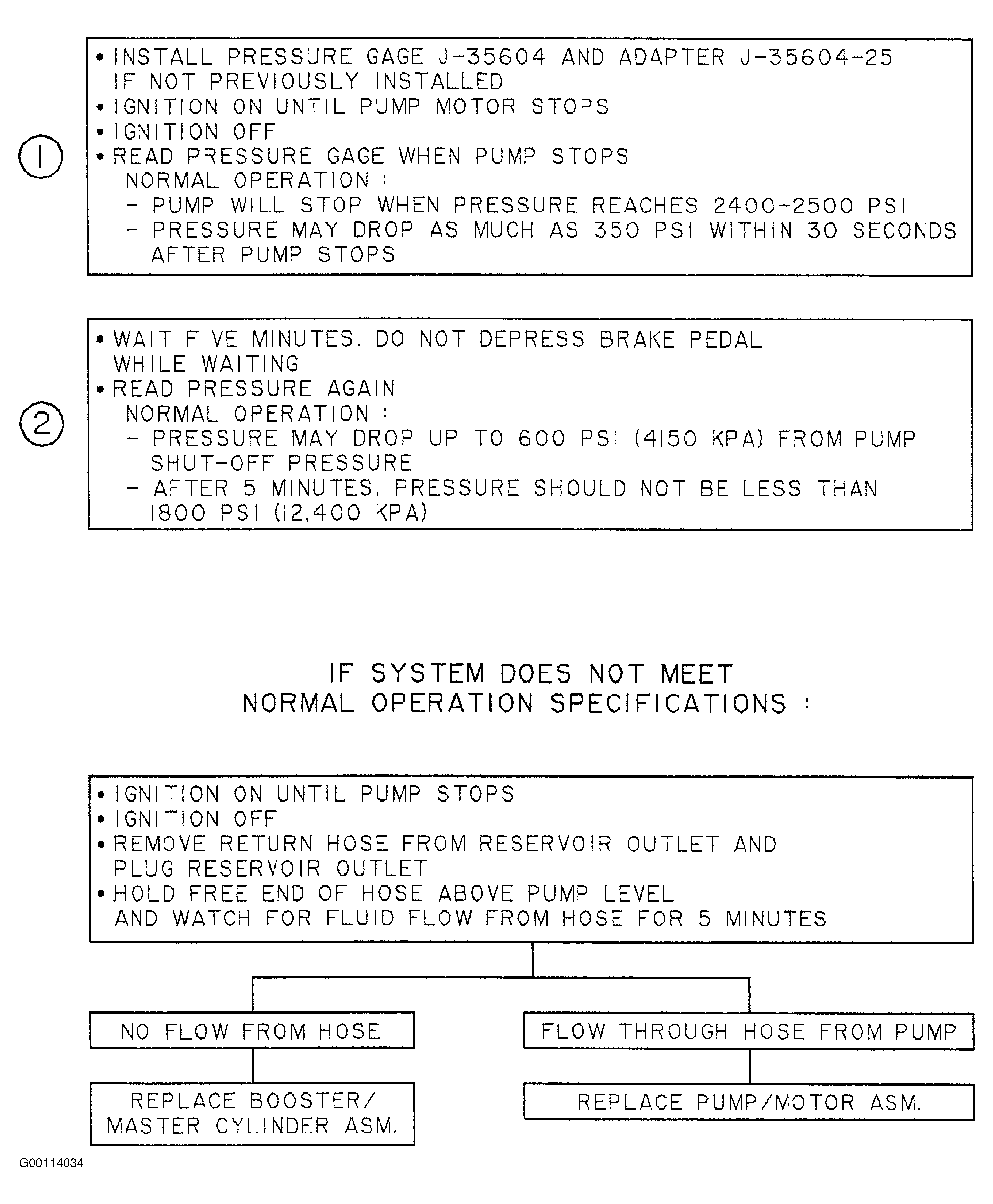

Fig 5: Chart C-4: Hydraulic Leakdown Diagnostic Test Flow Chart

Courtesy of GENERAL MOTORS CORP.

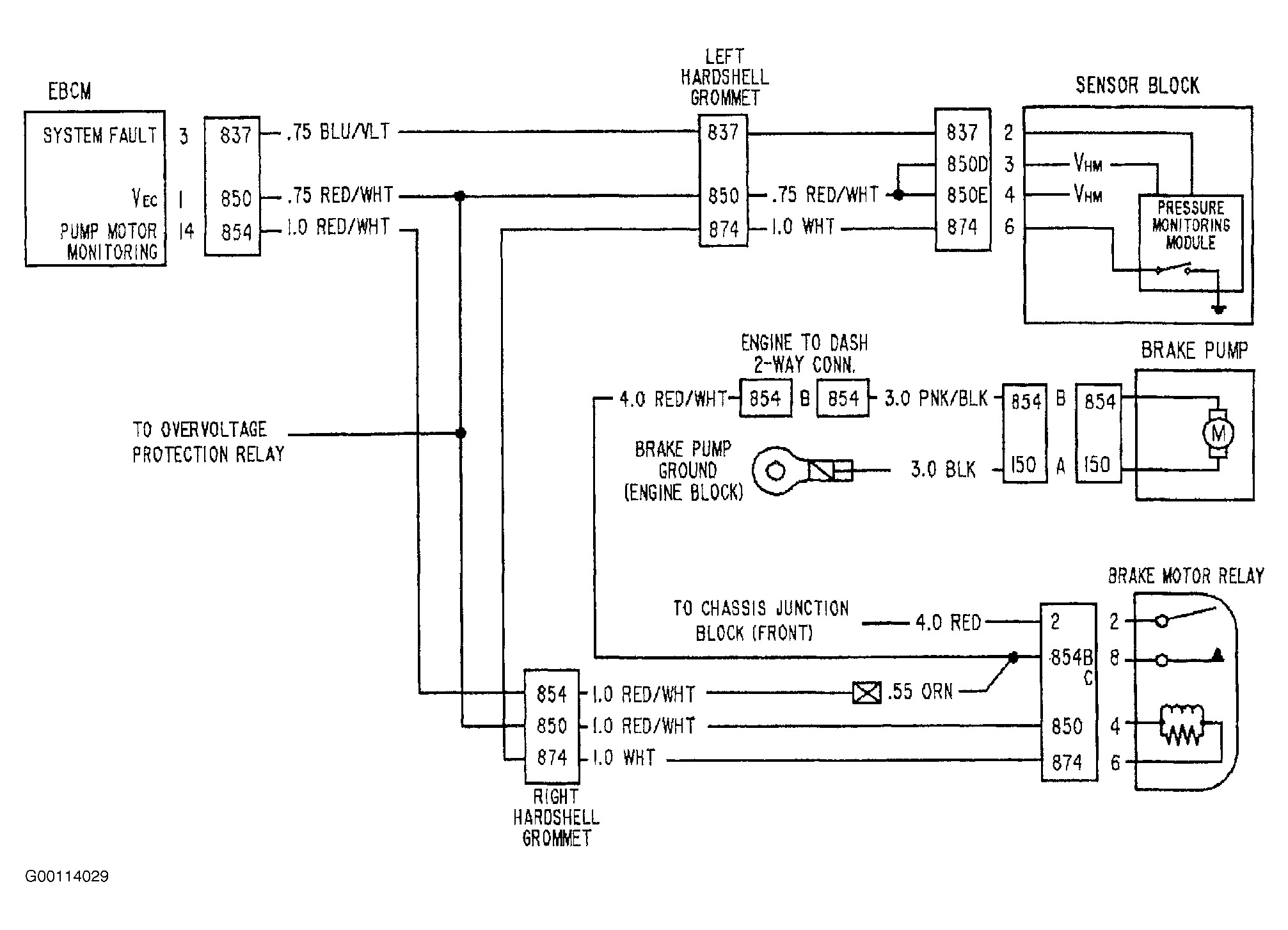

Fig 6: Identifying Pump Motor Circuit

Courtesy of GENERAL MOTORS CORP.
