Test C: Right Door Switch Assembly Test

NOTE: For connector view see Figure .
  1. Turn ignition switch to RUN. Disconnect connector C310 at right hand door switch assembly.

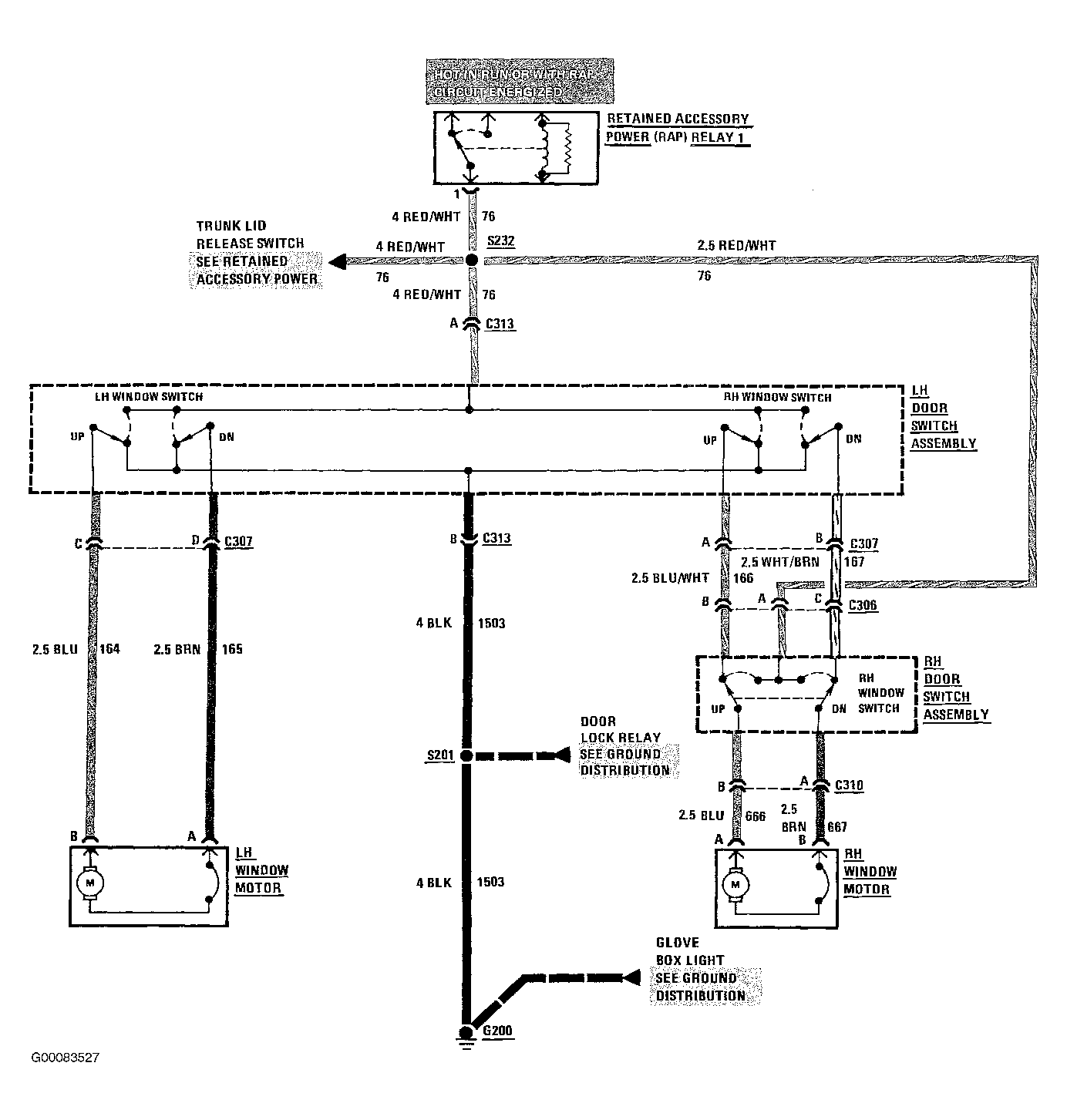

  2. Connect test lamp at right hand door switch assembly connector C310 between terminals A and B. See Figure and Figure .
  3. Operate right hand window switch in the LEFT hand door switch assembly UP and DN. Test lamp should light in UP and DN positions. If test lamp lights, switch and wiring are okay.
  4. If test lamp does not light, check wiring from left hand door switch assembly for an open. If wiring and power source to right hand door switch assembly are okay, replace right hand door swtich assembly.
