Notes on Intermittents

If Code B337 shows as "History", without any other codes, then check the ignition feed, CPS ground, and data circuits for intermittent faults. If other data codes are stored, see MULTIPLE INTERMITTENT CODES at the end of this article.

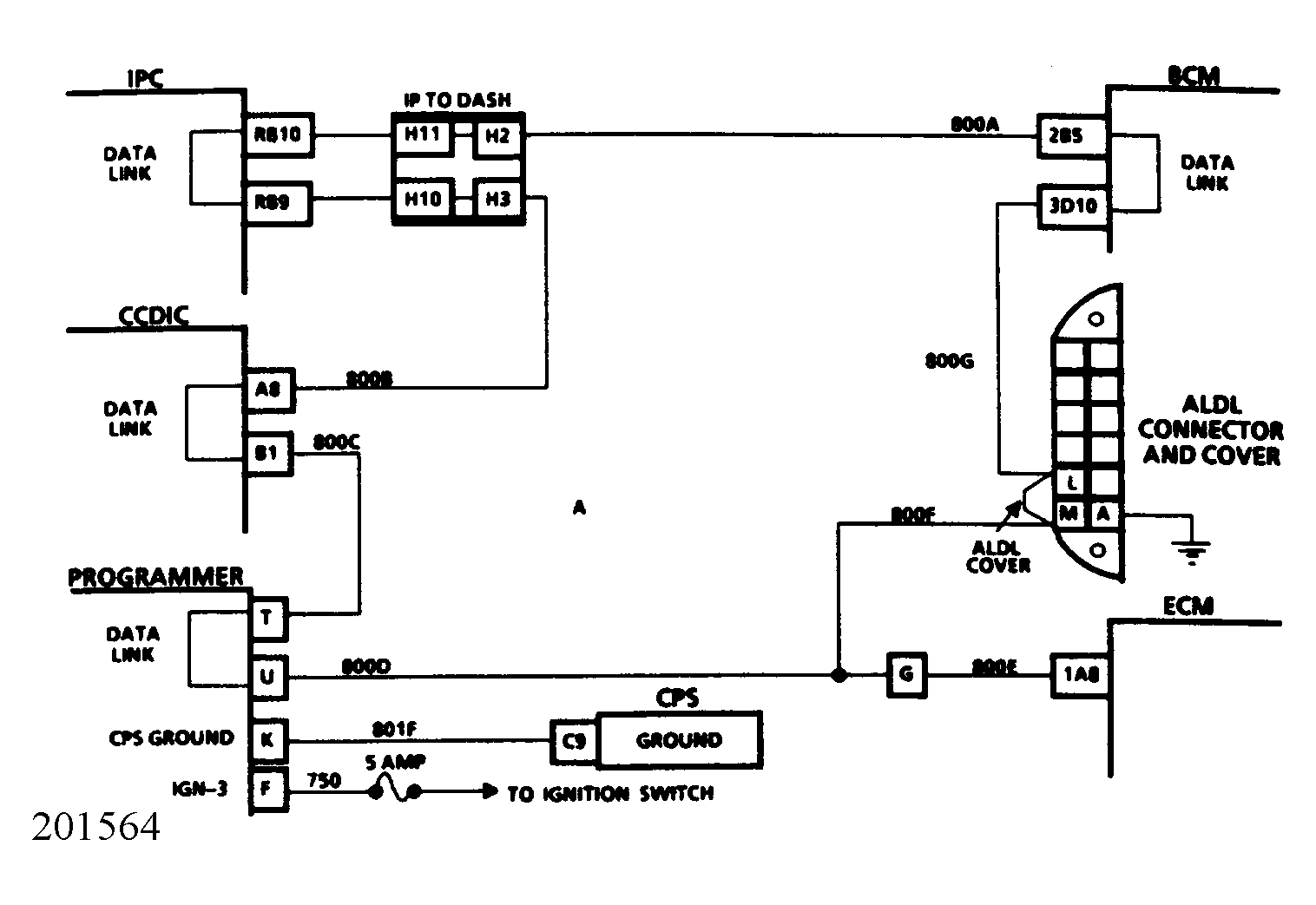

Fig 1: Code B337 - Schematic

Fig 2: Code B337 - Loss of HVAC Programmer Data
