Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Cruise Control Module | Under left side of instrument panel, below steering column. |
| Electronic Control Module (ECM) | Behind right side of dash, behind glove box. |

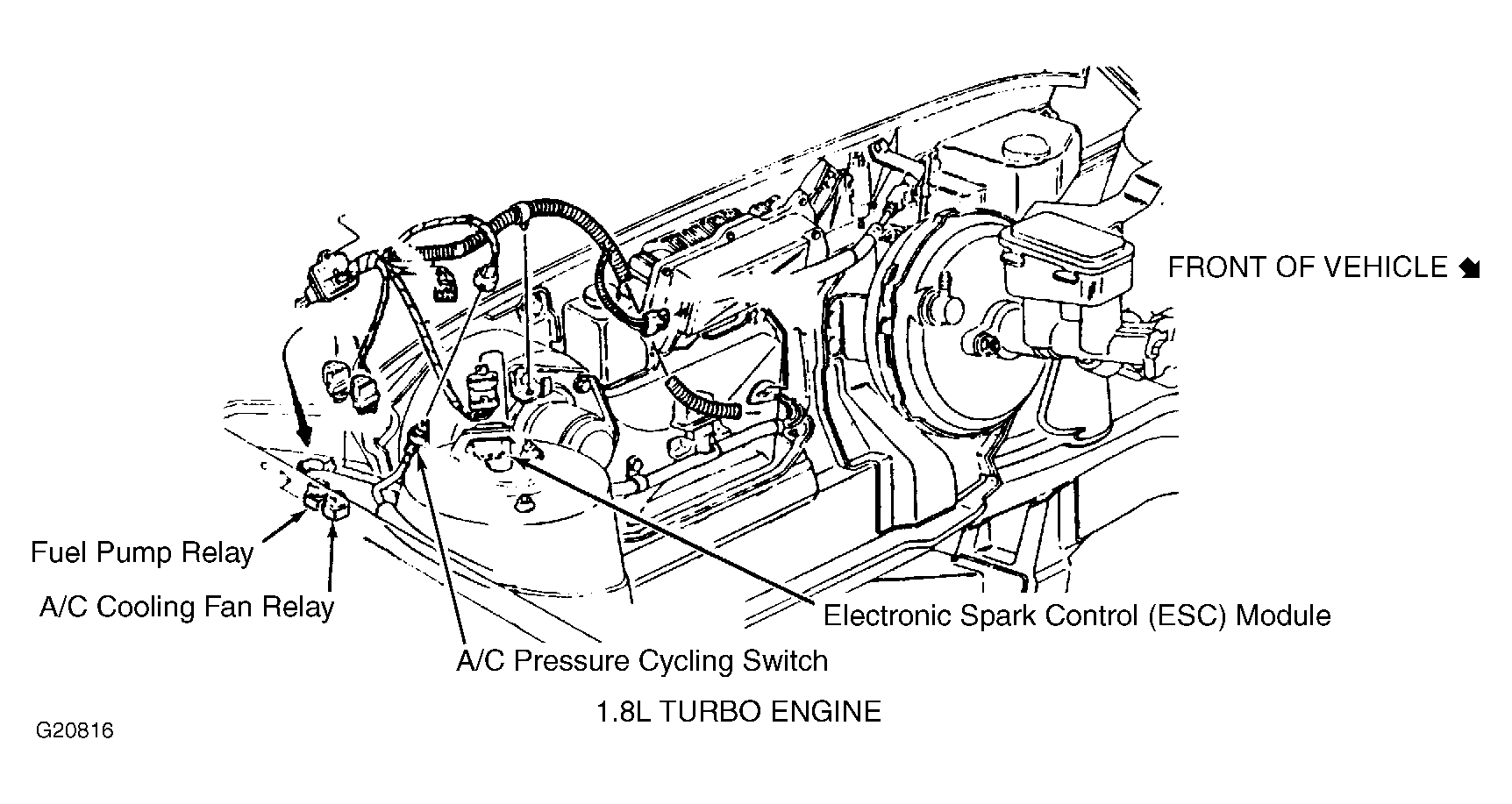

| Electronic Spark Control (ESC) Module (1.8L Turbo) | On rear of right front shock tower. See Figure. |
| Headlight Door Controller | On rear of left front shock tower. |
| Low Coolant Module | Behind instrument panel, to left of steering column. |
| Pulse Wiper Motor Module | On center of firewall. See Figure & 10. |
