Wiring Diagrams

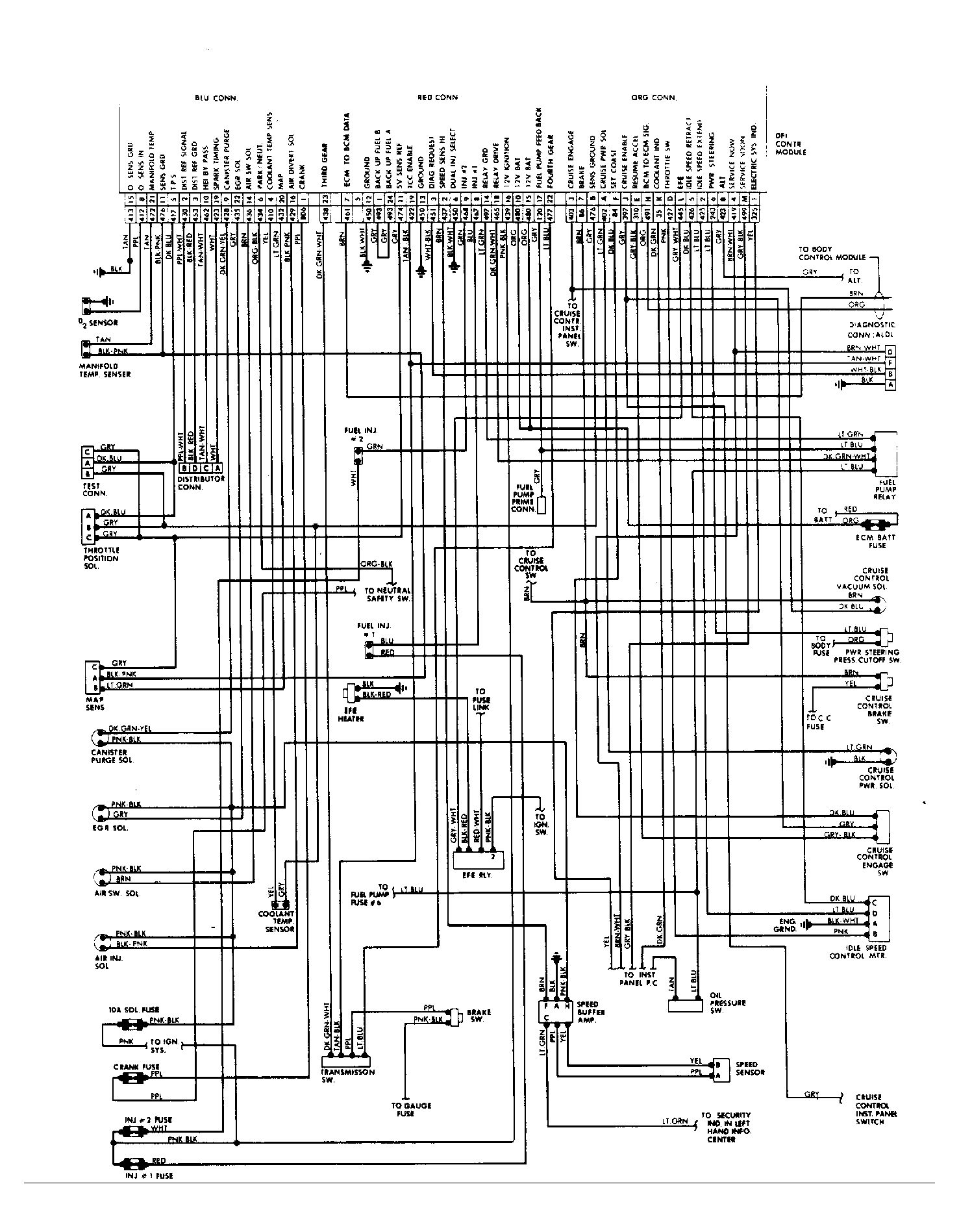

Fig 1: DFI System Wiring Diagram (Brougham, Eldorado & Seville)

G3226

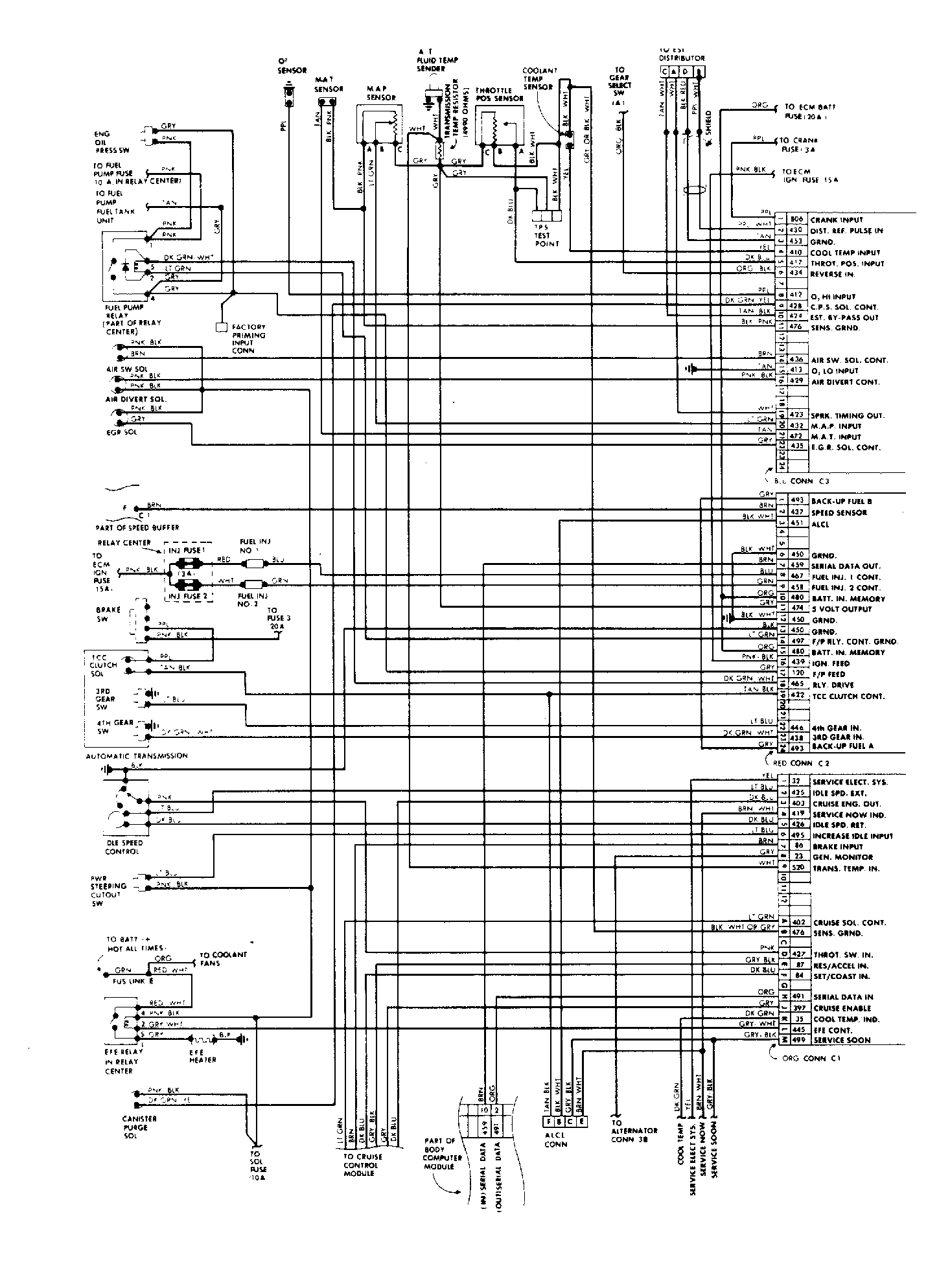

Fig 2: DFI Wiring Diagram (DeVille & Fleetwood)

G3227
