Injection Pump Adapter Seal: Installation

1. Apply chassis lube to seal. Place seal on Installer (J-28425). See Fig 1 . Install seal on pump adapter.
2. Tighten adapter bolts to 25 ft. lbs. (34 N.m). Tighten intermediate adapter bolts to 35 ft. lbs. (47 N.m). Install injection pump.

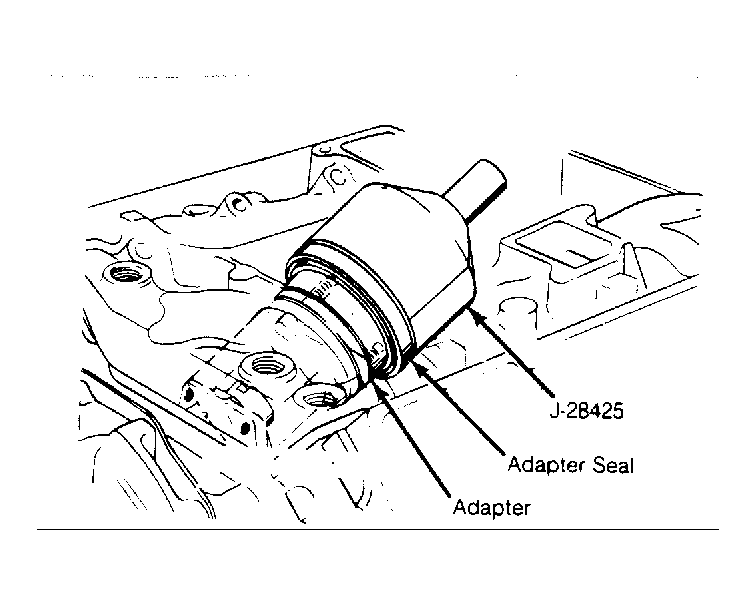

Fig 1: Installing Adapter Seal V8 is illustrated. V6 is similar.
