Home >> Cadillac >> 1983 >> Seville 4.1 8 >> Repair and Diagnosis >> Engine Performance >> System >> DFI Tests W/Codes >> Diagnostic Charts >> Chart 11B - Wrong Fuel Data Display >> Notes

Chart 11B - Wrong Fuel Data Display: Notes

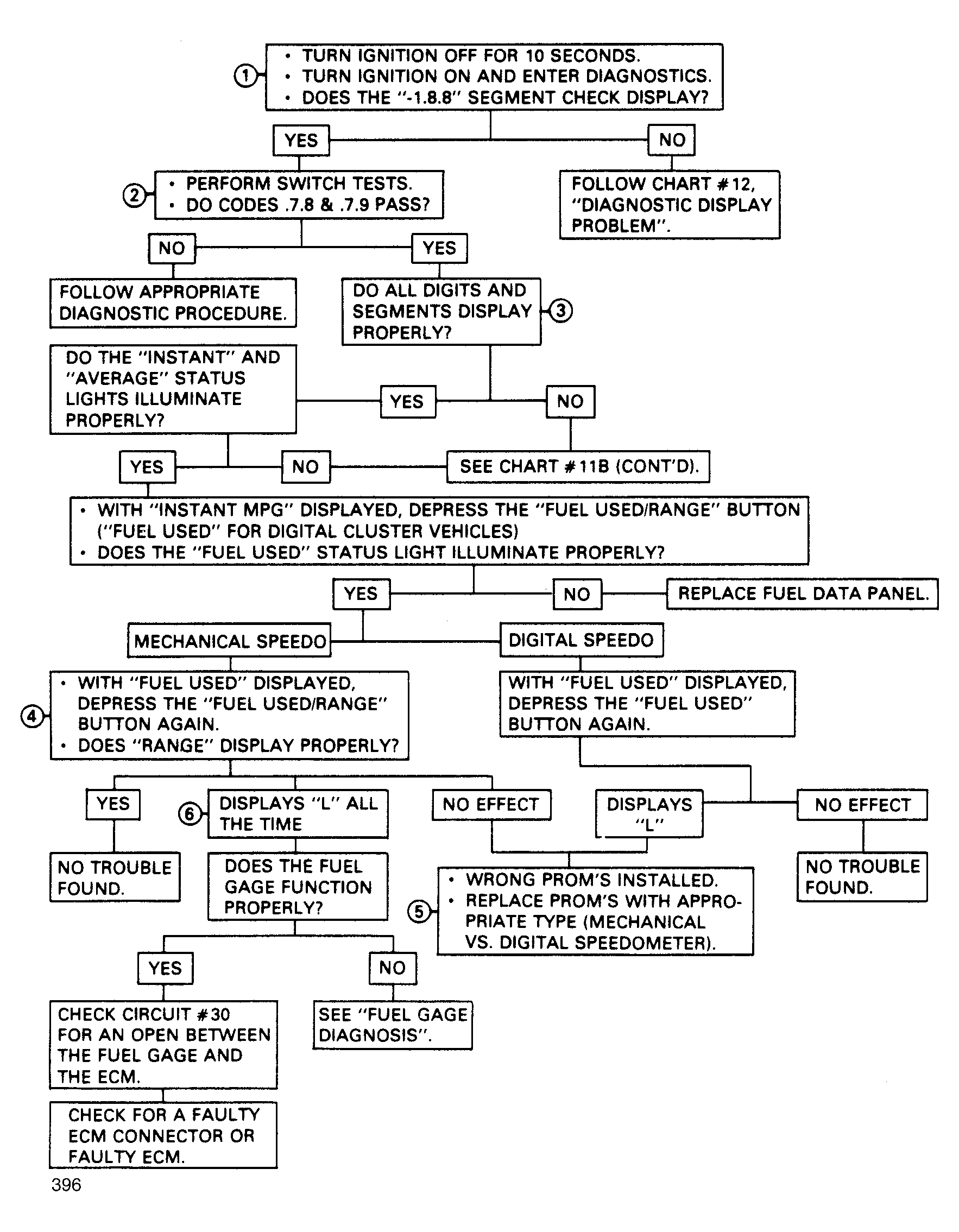

Fig 1: Performance Chart No. 11B - Improper Fuel Data Display

G396
