Code 80 - A/C Clutch Circuit: Notes

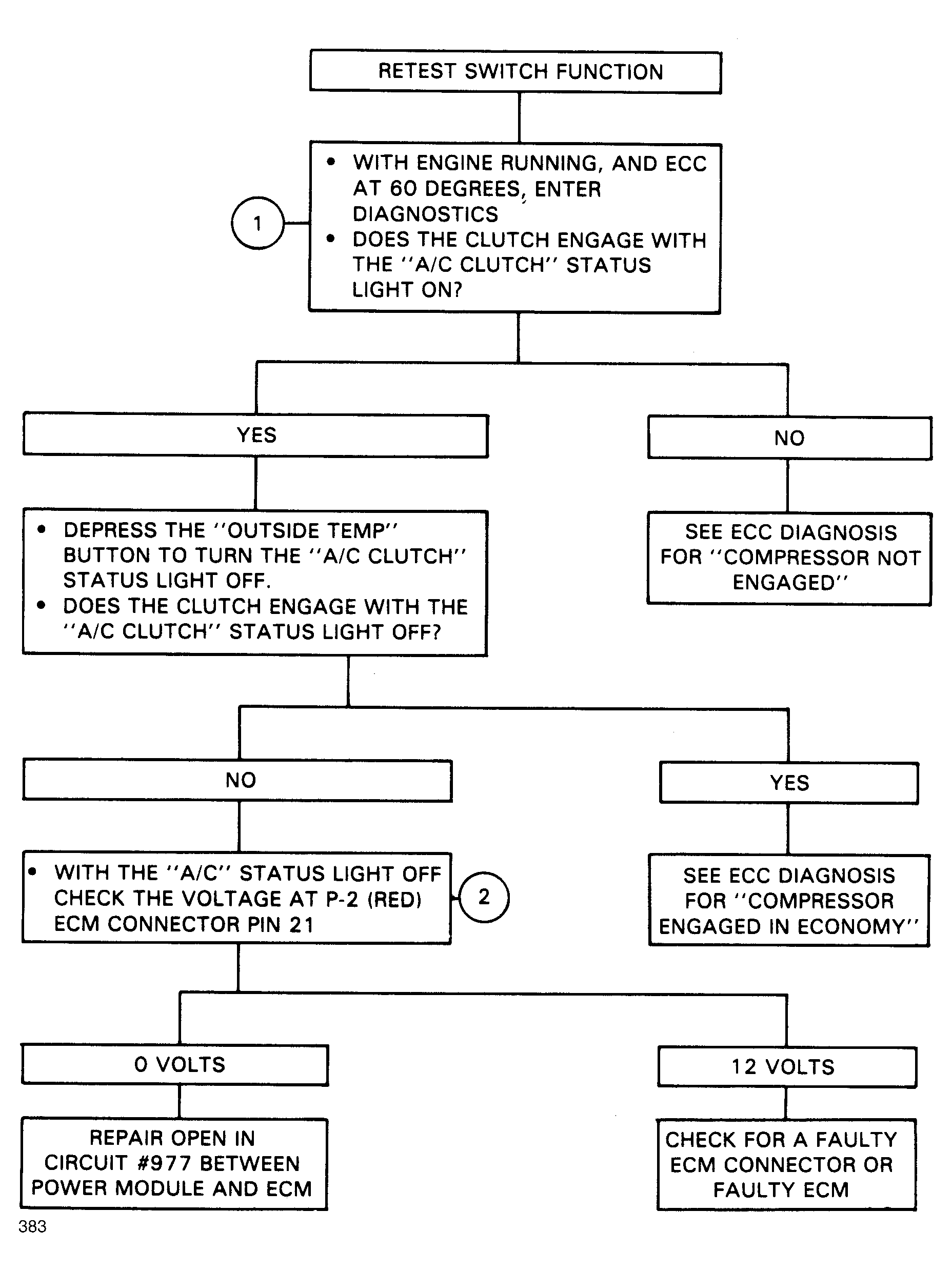

Fig 1: Flow Chart, Code 80 - Air Conditioning Clutch Circuit

G383

Fig 2: Flow Chart, Code 80 - Air Conditioning Clutch Circuit

GB0046356
