Home >> Cadillac >> 1983 >> Eldorado 4.1 8 >> Repair and Diagnosis >> Engine Performance >> System >> DFI Tests W/Codes >> Diagnostic Code Charts >> Code 74 - Reverse Circuit >> Notes

Code 74 - Reverse Circuit: Notes

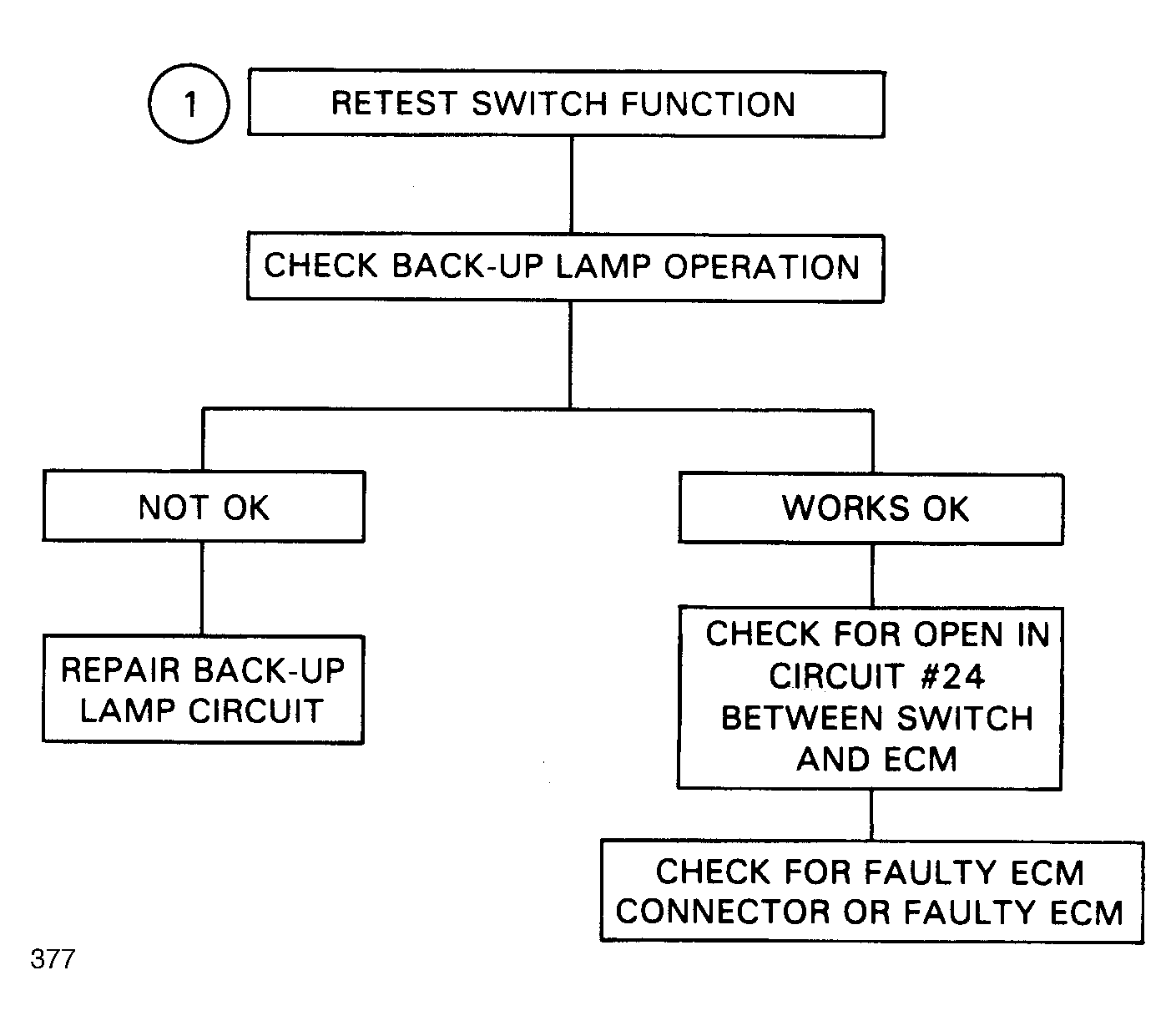

Fig 1: Flow Chart, Code 74 - Reverse Circuit

G377

Fig 2: Flow Chart, Code 74 - Reverse Circuit

GB0046350
