Code 45 - Rich Exhaust Signal: Notes

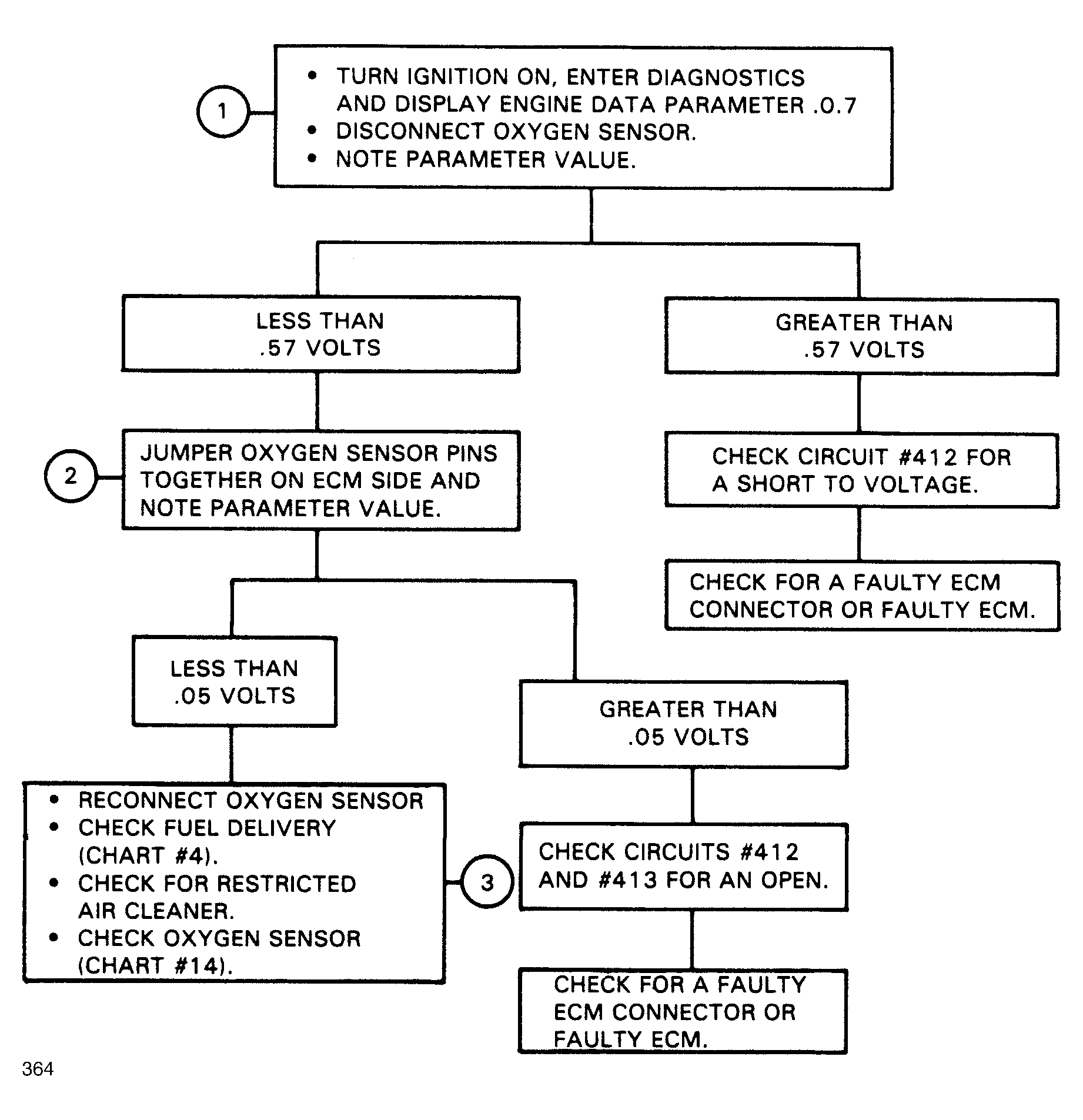

Fig 1: Flow Chart, Code 45 - Rich Exhaust Signal

G364

Fig 2: Flow Chart, Code 45 - Rich Exhaust Signal

GB0046342
