Code 29 - Shorted 4TH Gear Circuit: Notes

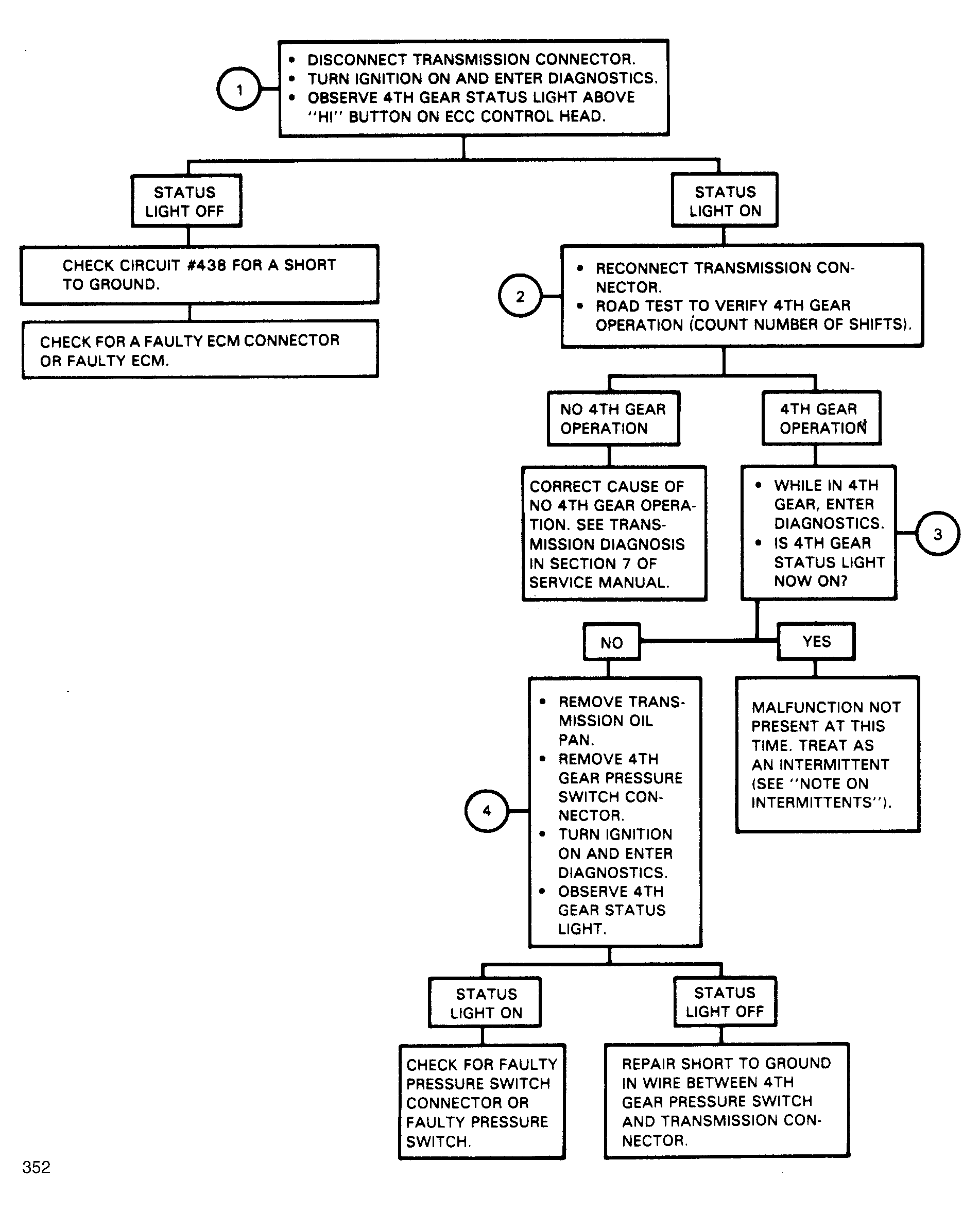

Fig 1: Flow Chart, Code 29 - Shorted 4th Gear Circuit

G352

Fig 2: Flow Chart, Code 29 - Shorted 4th Gear Circuit

GB0046328
