Code 28 - Open 4TH Gear Circuit: Notes

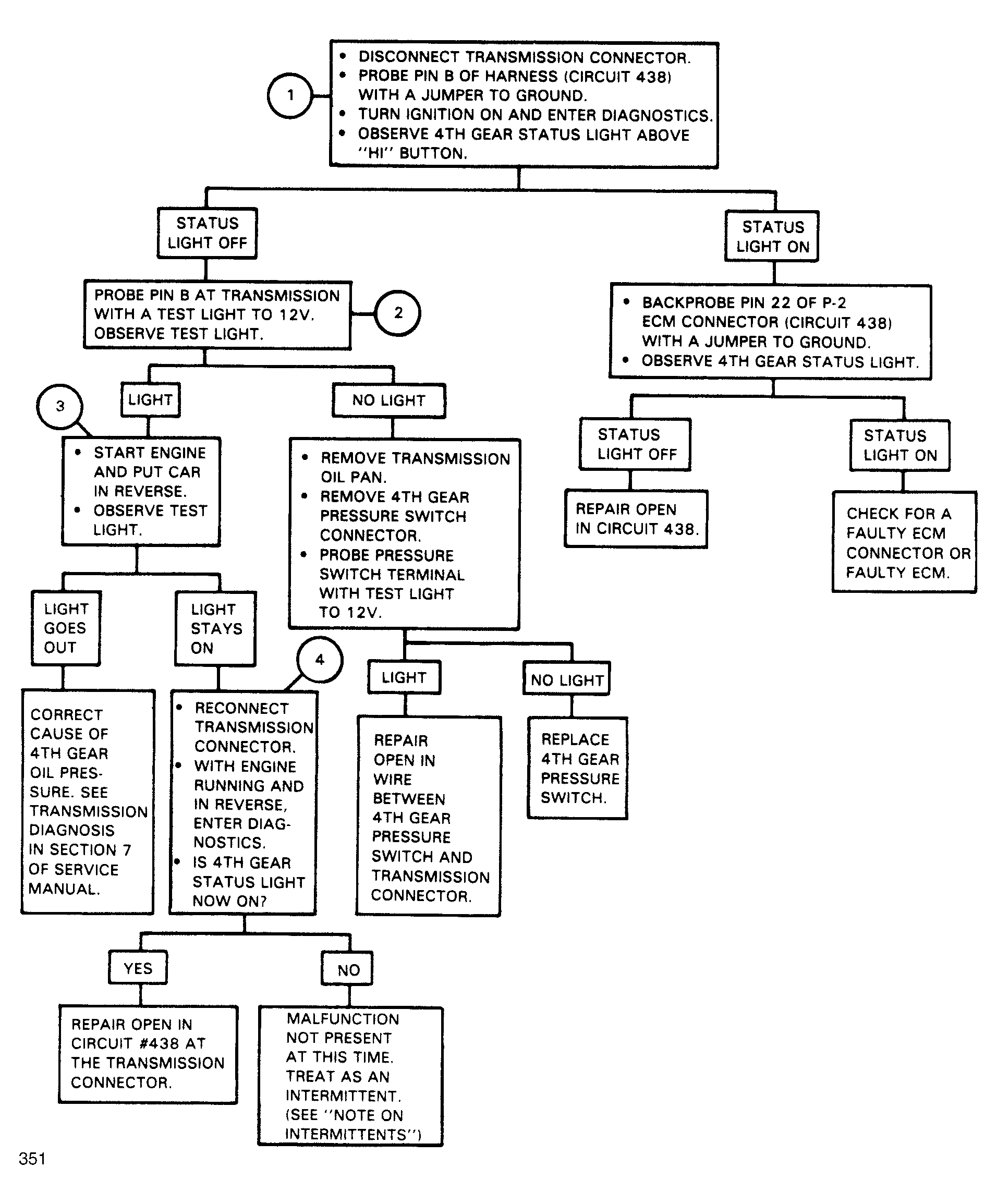

Fig 1: Flow Chart, Code 28 - Open 4th Gear Circuit

G351

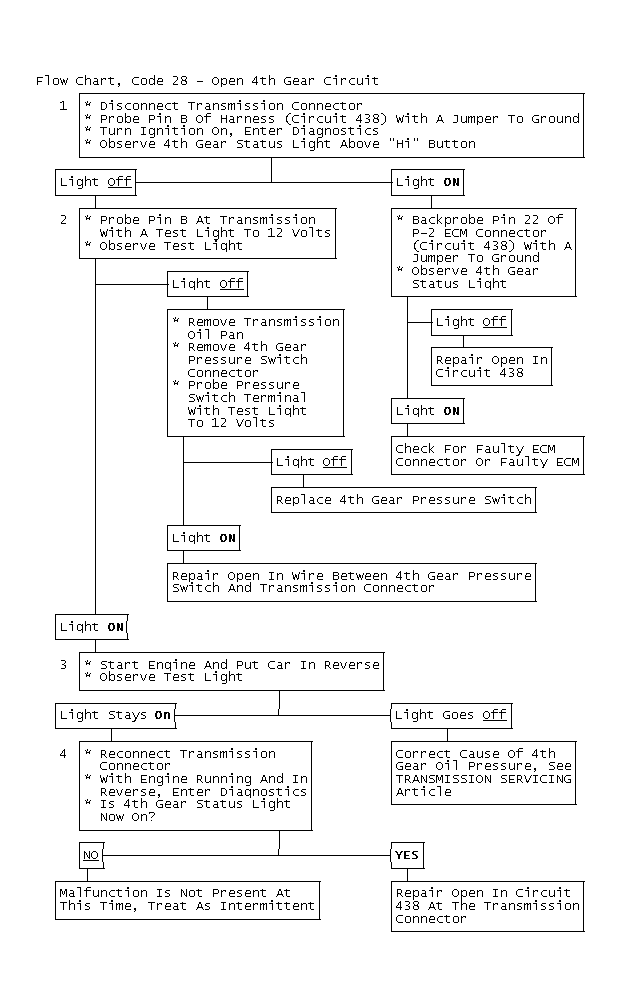

Fig 2: Flow Chart, Code 28 - Open 4th Gear Circuit

GB0046327
