Chart 12 - Diagnostic Display Problems: Notes

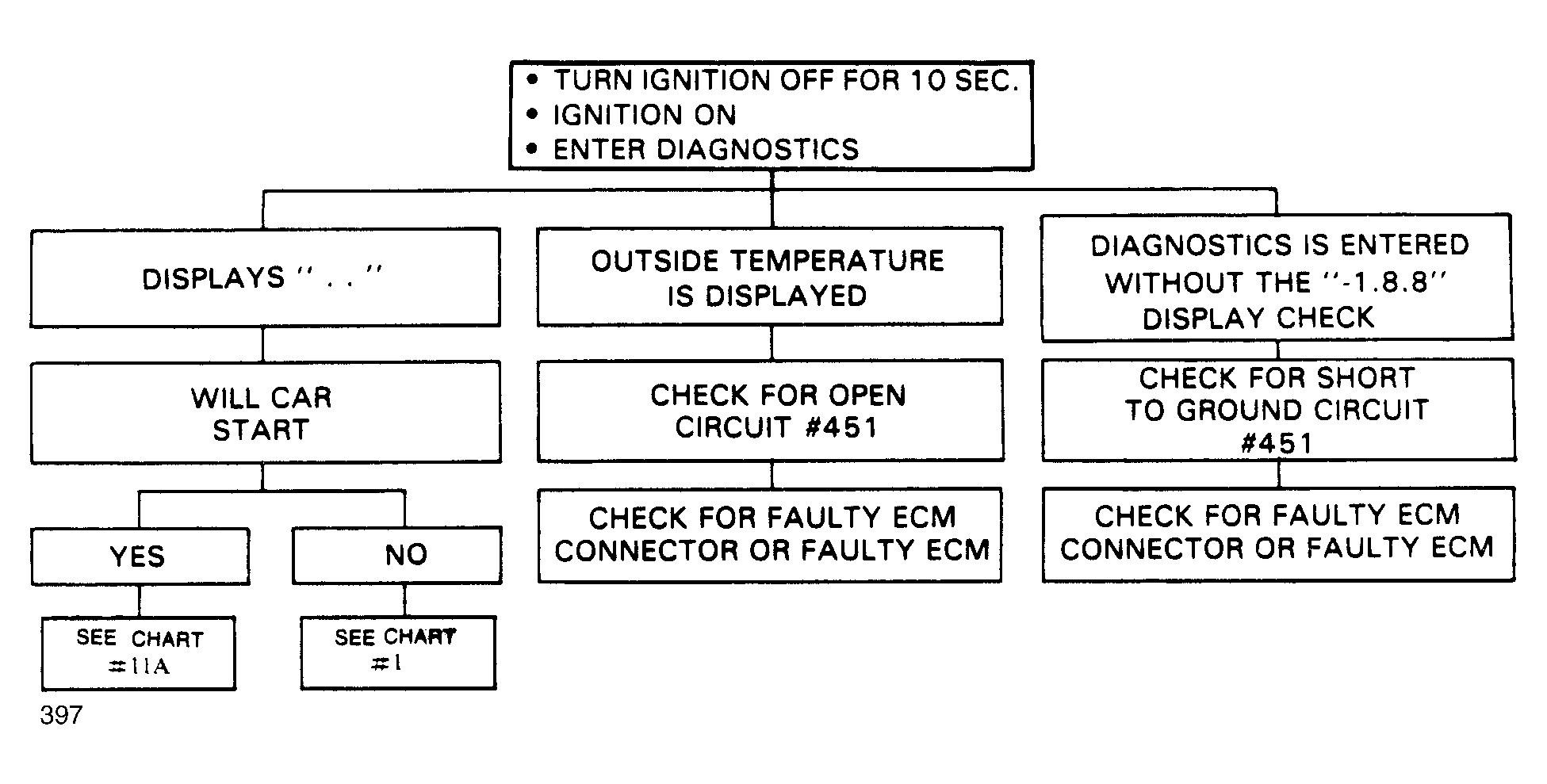

Fig 1: Performance Chart No. 12 - Diagnostic Display Problems

G397
