Wiring Diagrams

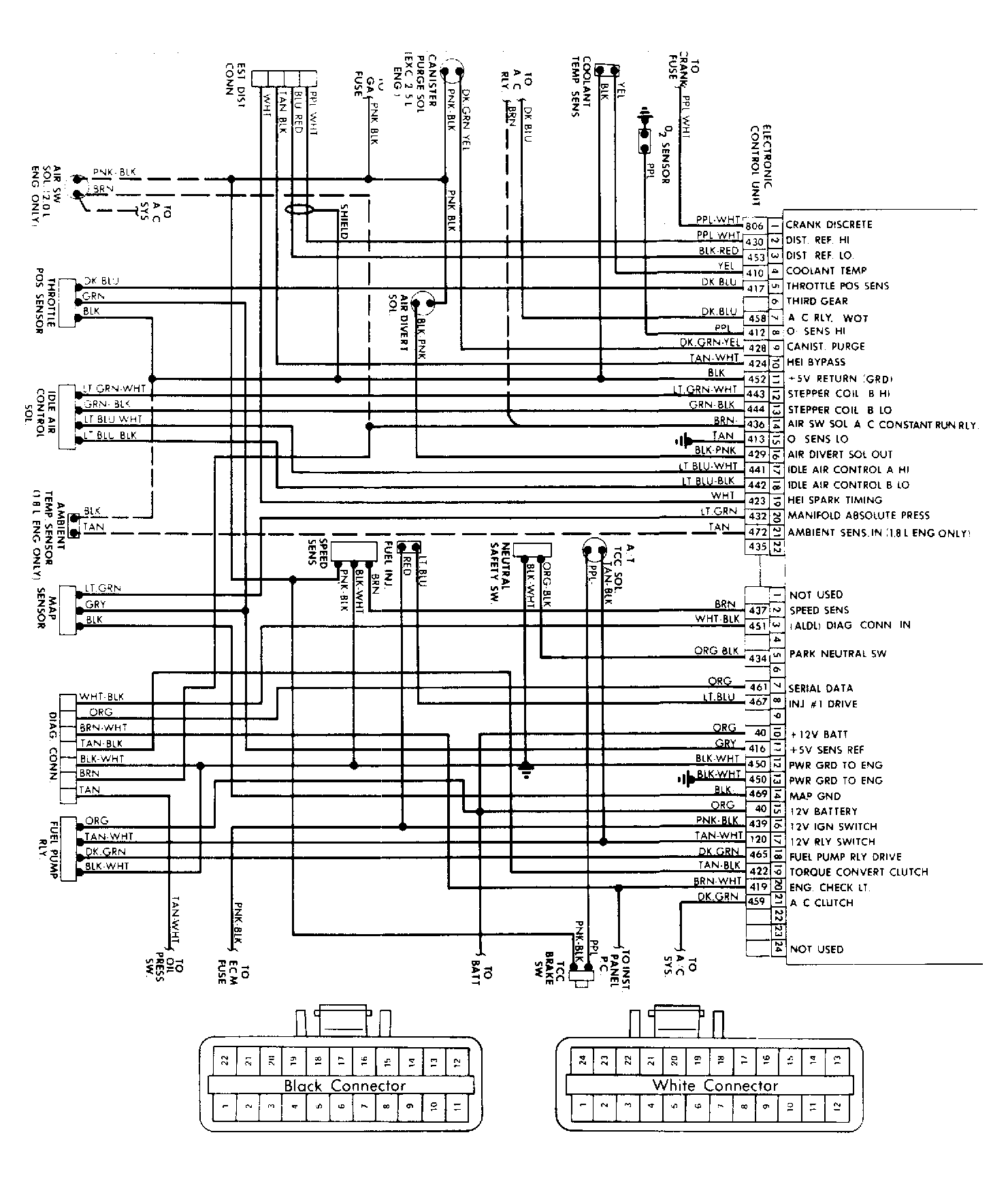

Fig 1: EFI (Exc. 5.0L) System Wiring Diagram

G220

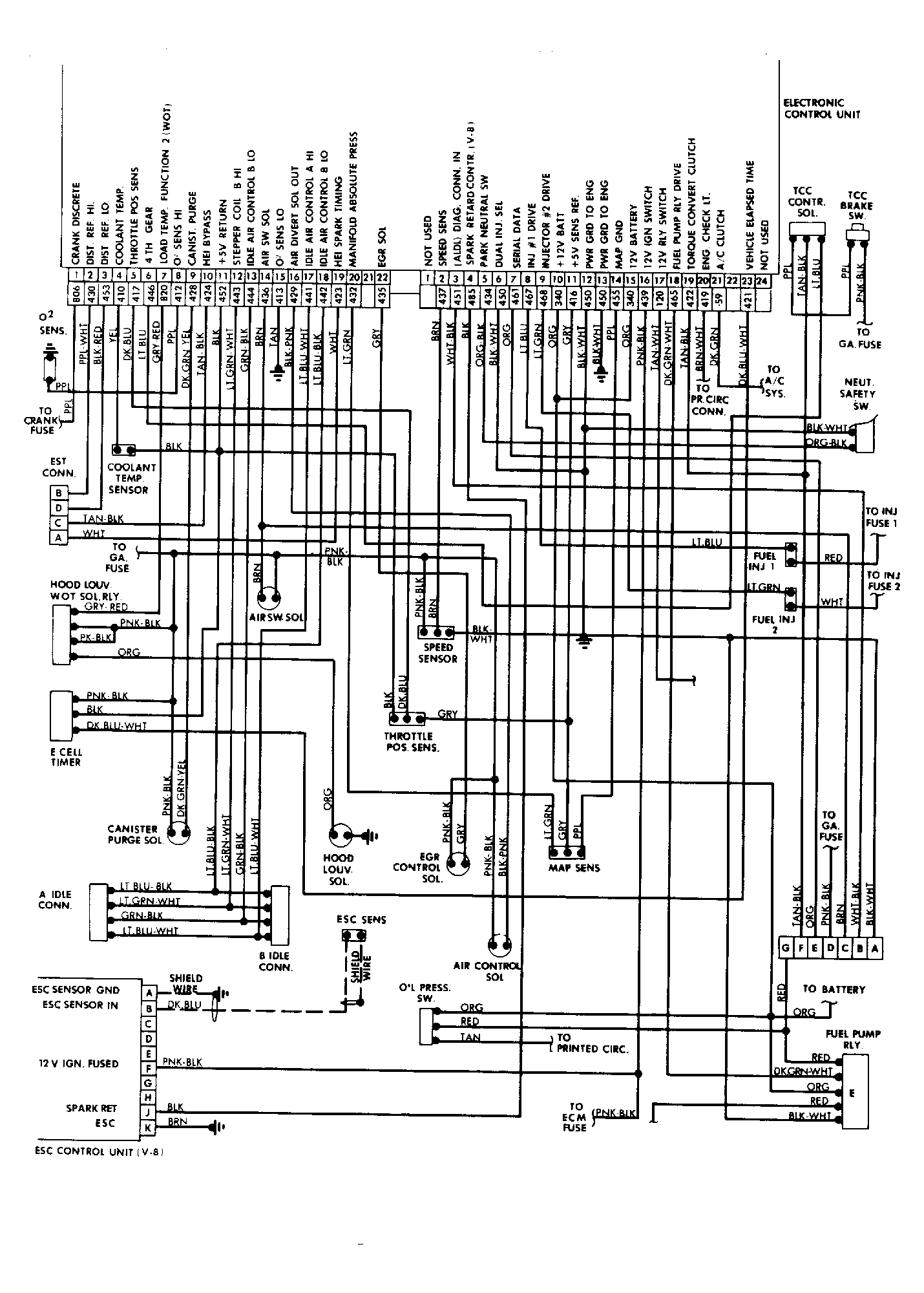

Fig 2: EFI (5.0L) System Wiring Diagram (Camaro & Firebird Only)

G221
