LEMON Manuals
: Even more car manuals for everyone
Home
>>
Cadillac
>>
1983
>>
Cimarron Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
TBI Tests W/Codes
>>
EFE (Electrically Heated) Check
EFE (Electrically Heated) Check

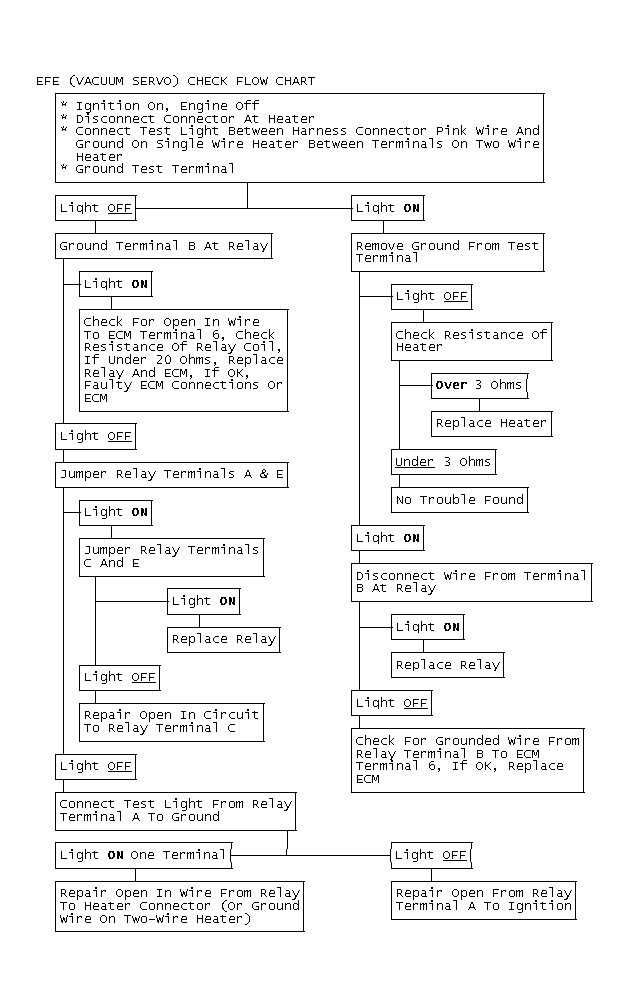

Fig 1: EFE (Vacuum Servo) Check Flow Chart

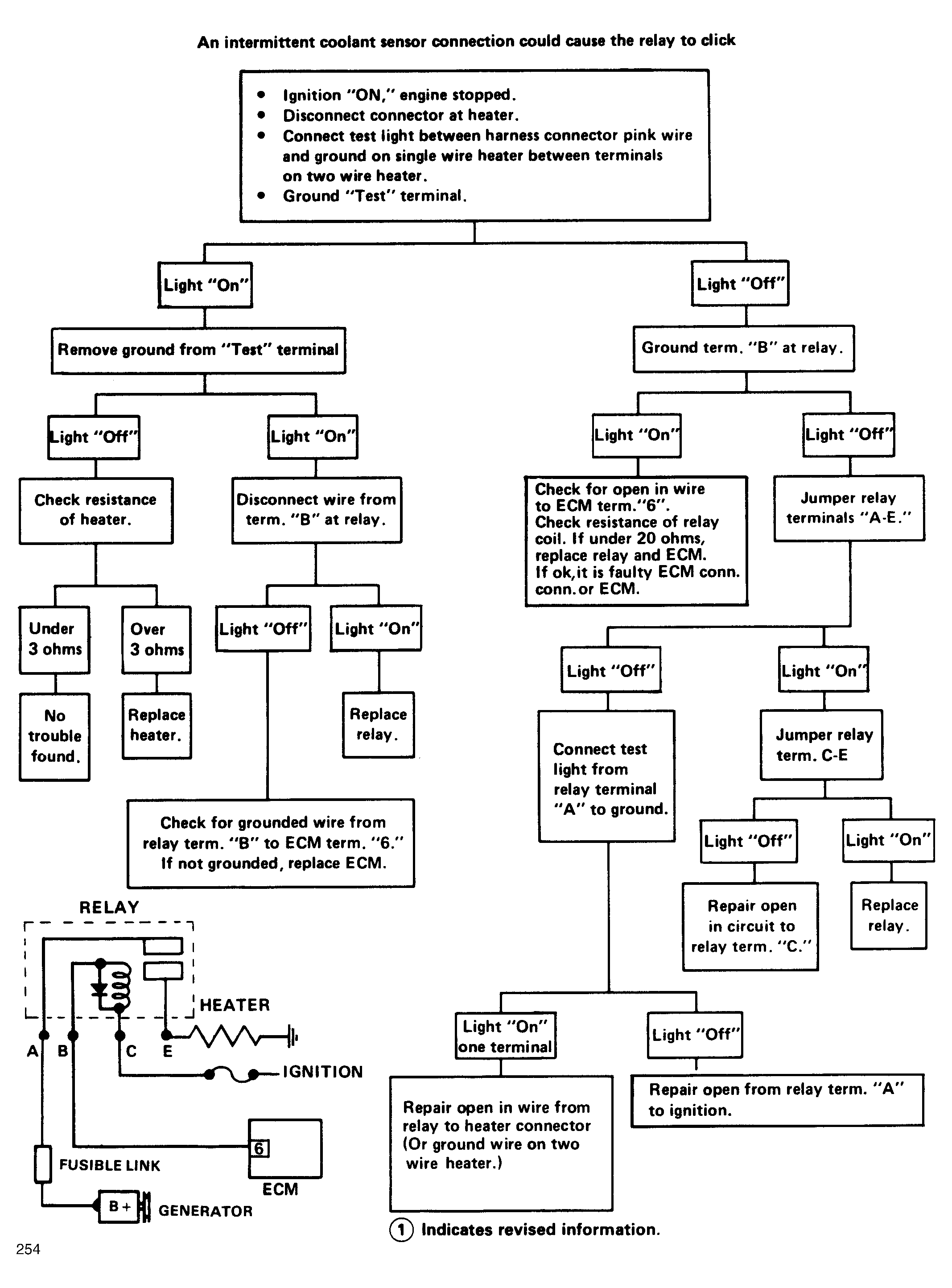

Fig 2: EFE (Vacuum Servo) Check Flow Chart
