Code 45: Rich Exhaust Indication

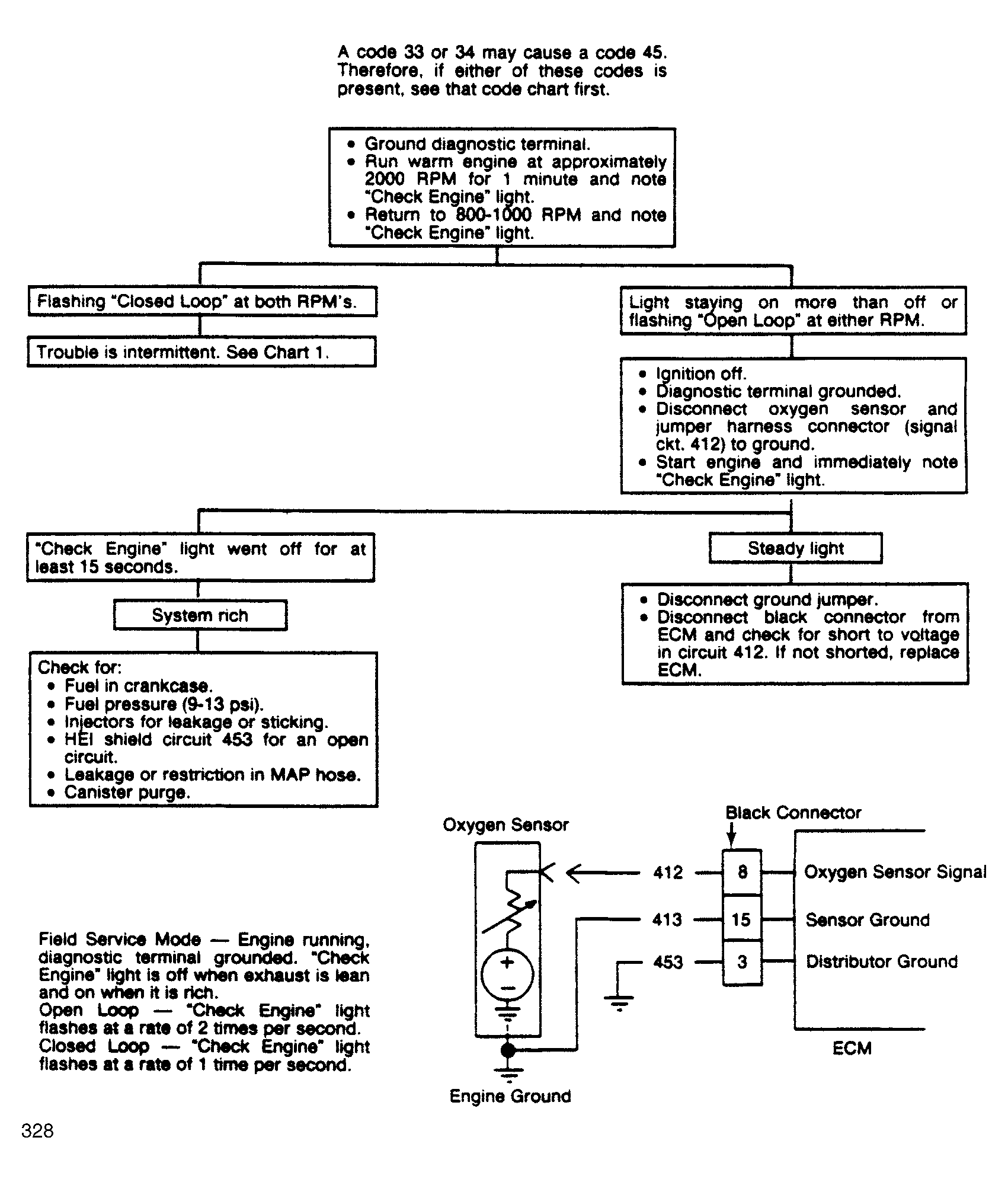

Fig 1: Code 45: Rich Exhaust Indication Flow Chart

G328

Fig 2: Code 45: Rich Exhaust Indication Flow Chart

GB0045675
