Home >> Cadillac >> 1983 >> Cimarron Standard >> Repair and Diagnosis >> Engine Performance >> System >> TBI Tests W/Codes >> Code 42: Electric Spark Timing (Est) System

Code 42: Electric Spark Timing (Est) System

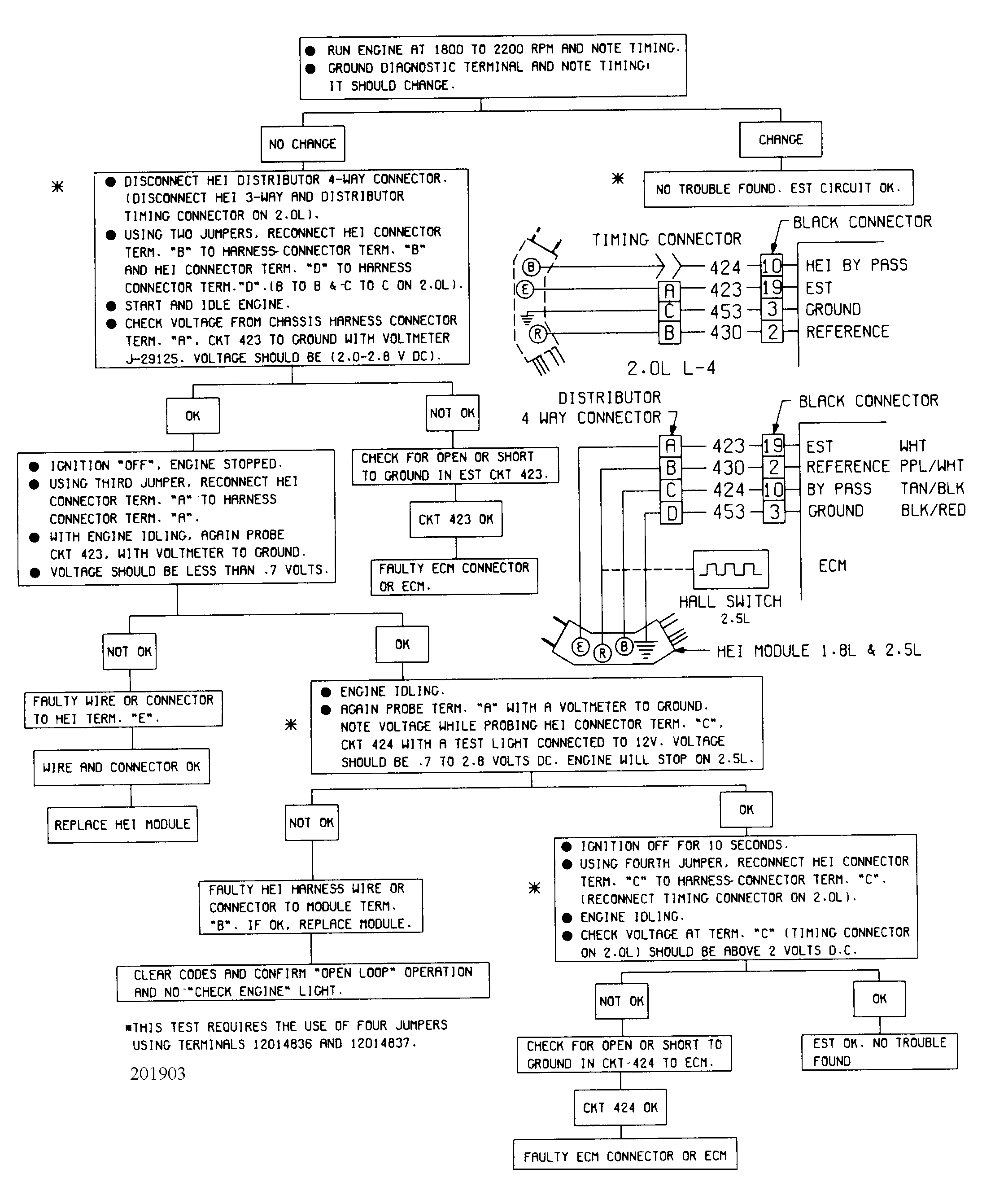

Fig 1: Code 42: Electronic Spark Timing (EST) Flow Chart
G201903

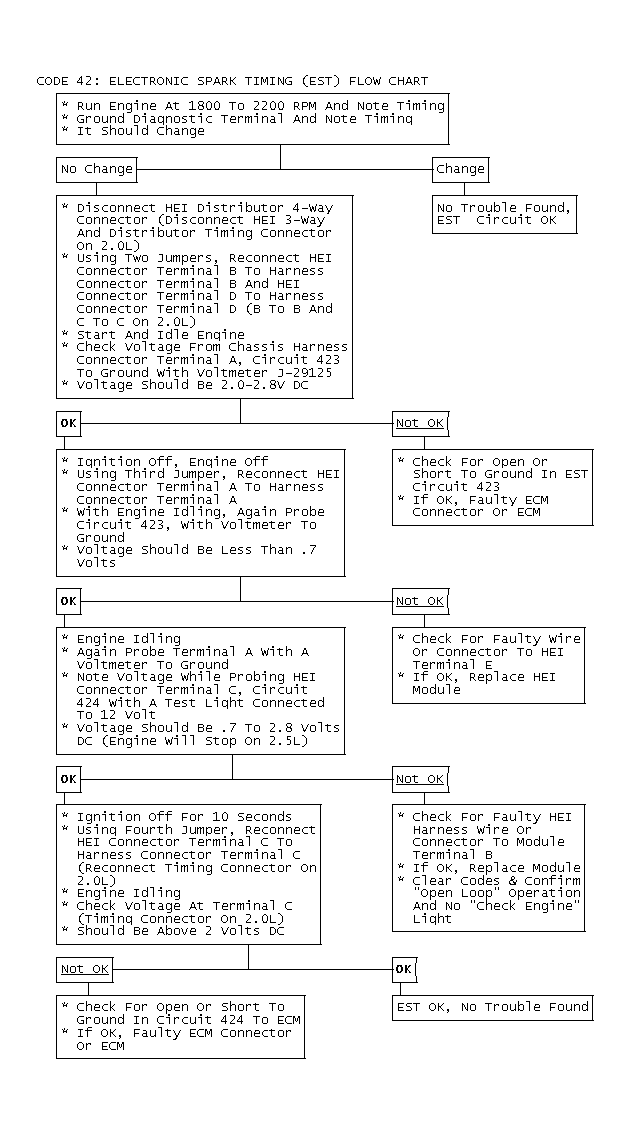

Fig 2: Code 42: Electronic Spark Timing (EST) Flow Chart
GB0045672
