Wiring Diagrams

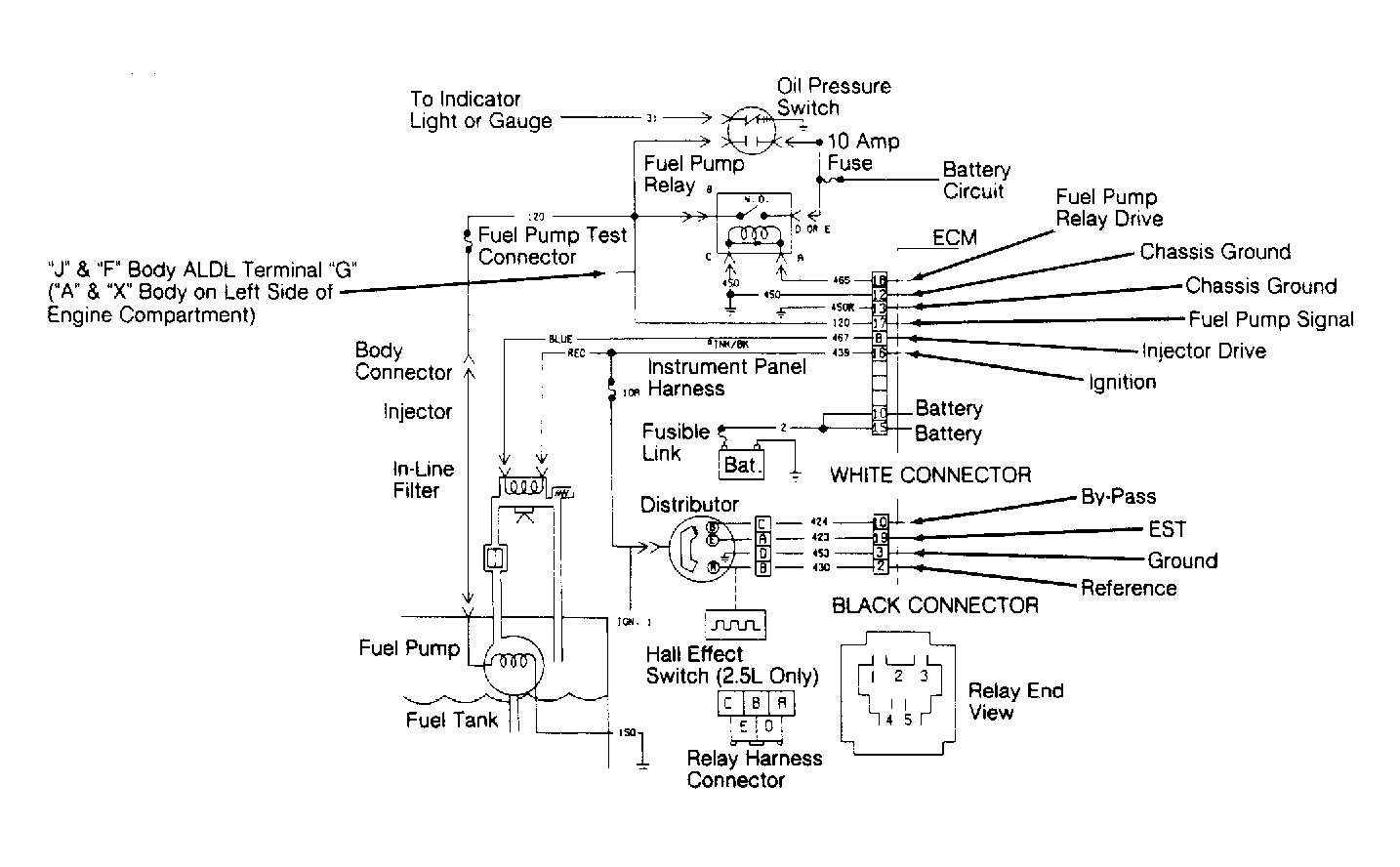

Fig 1: 1.8L & 2.5L Fuel Injection Wiring Diagram

G609

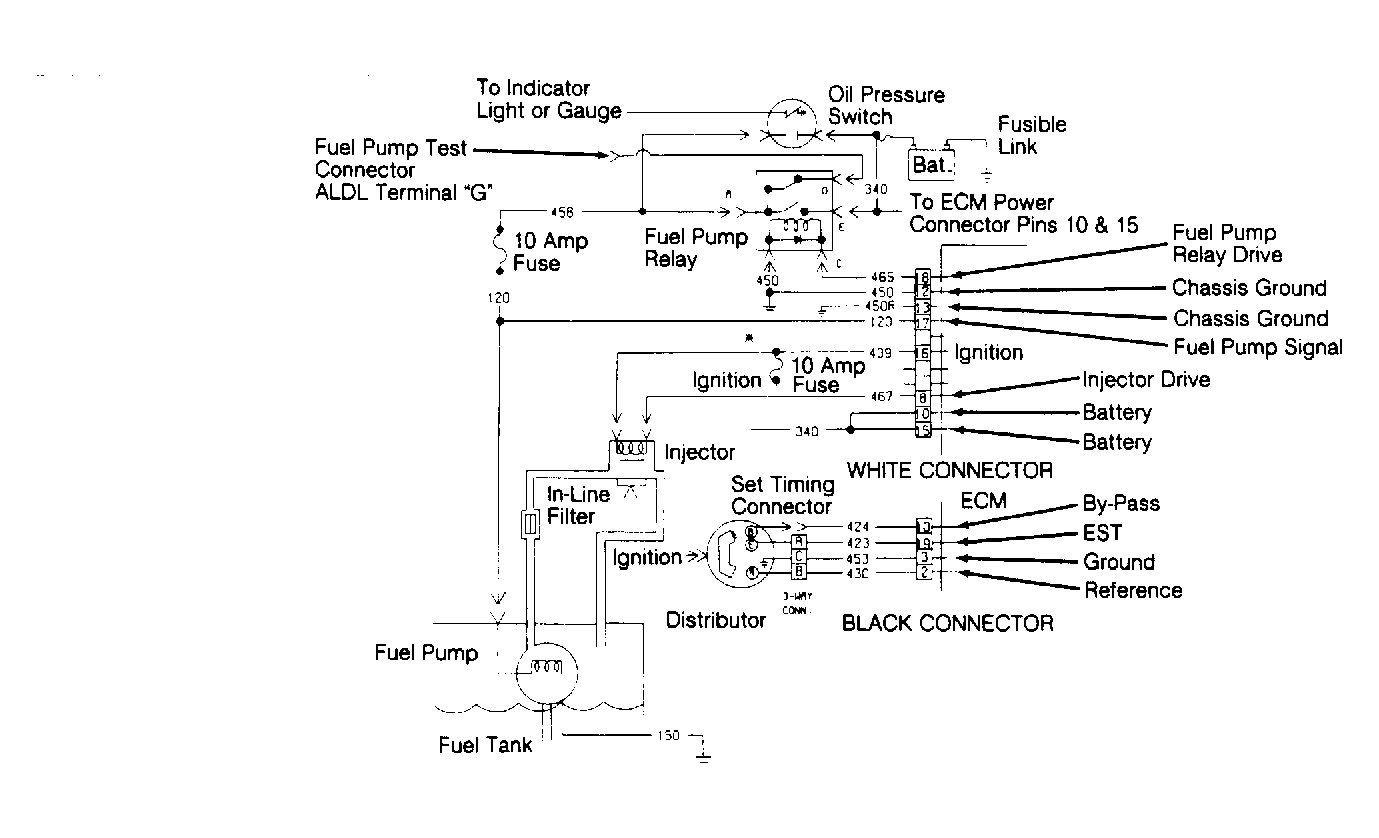

Fig 2: 2.0L Fuel Injection Wiring Diagram

G610
