Home >> Cadillac >> 1983 >> Cimarron Automatic >> Repair and Diagnosis >> Engine Performance >> System >> TBI Tests W/Codes >> Code 43: Electric Spark Control (ESC) Volt Lo

Code 43: Electric Spark Control (ESC) Volt Lo

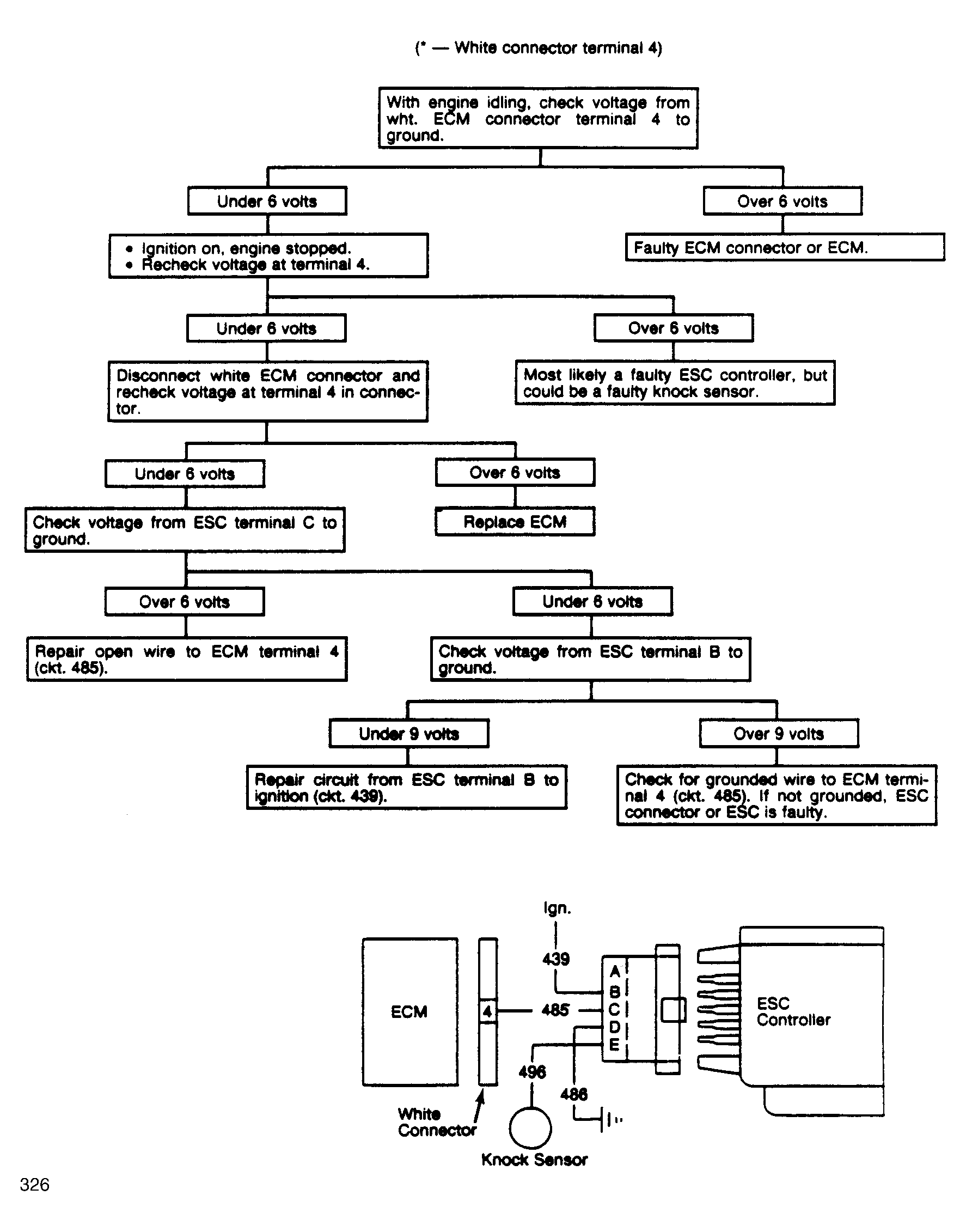

Fig 1: Code 43: ESC Voltage at ECM Lo Flow Chart

G326

Fig 2: Code 43: ESC Voltage At ECM Lo Flow Chart

GB0045673
