Chart 6A: HEI Check W/Remote Ignition Coil
Chart 6A: HEI Check W/Remote Ignition Coil

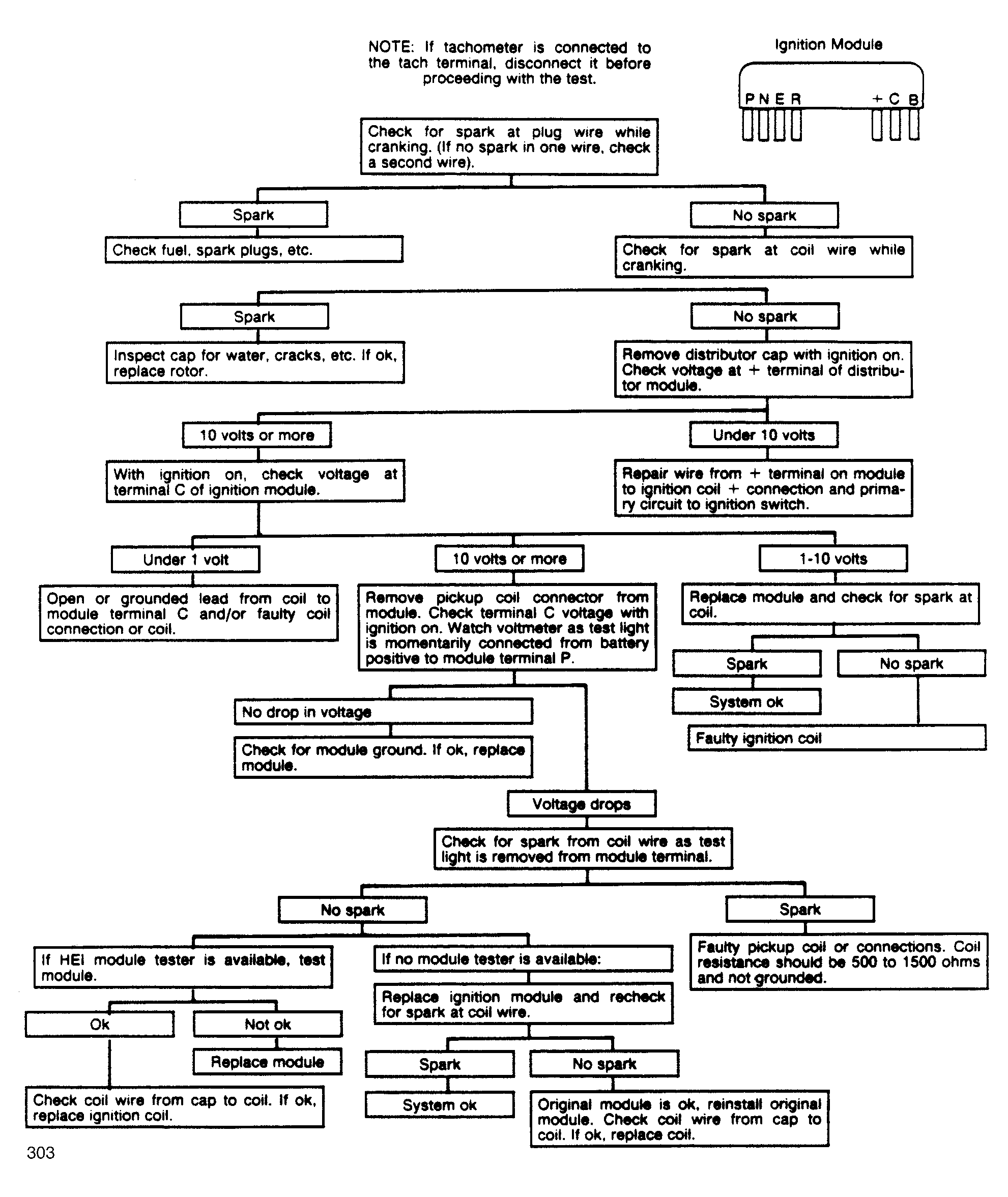

Fig 1: Chart 6A: HEI Check W/Remote Ign Coil Flow Chart

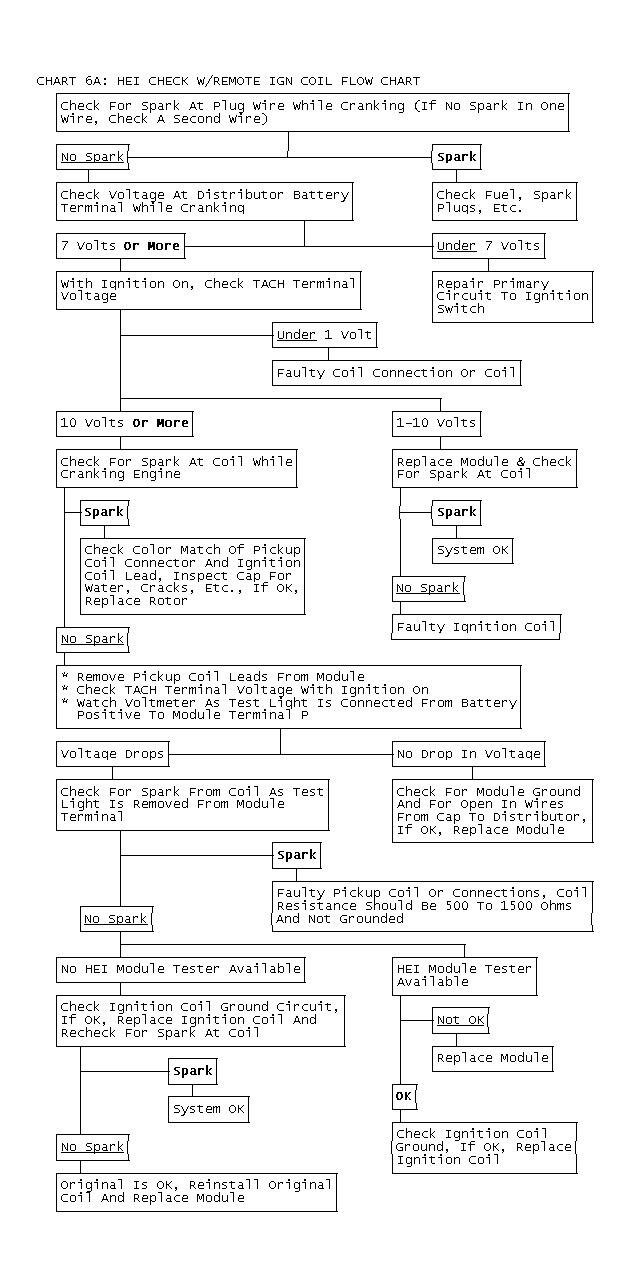

Fig 2: Chart 6A: HEI Check W/Remote Ign Coil Flow Chart
