Chart 6: HEI Check W/Integral Ignition Coil
Chart 6: HEI Check W/Integral Ignition Coil

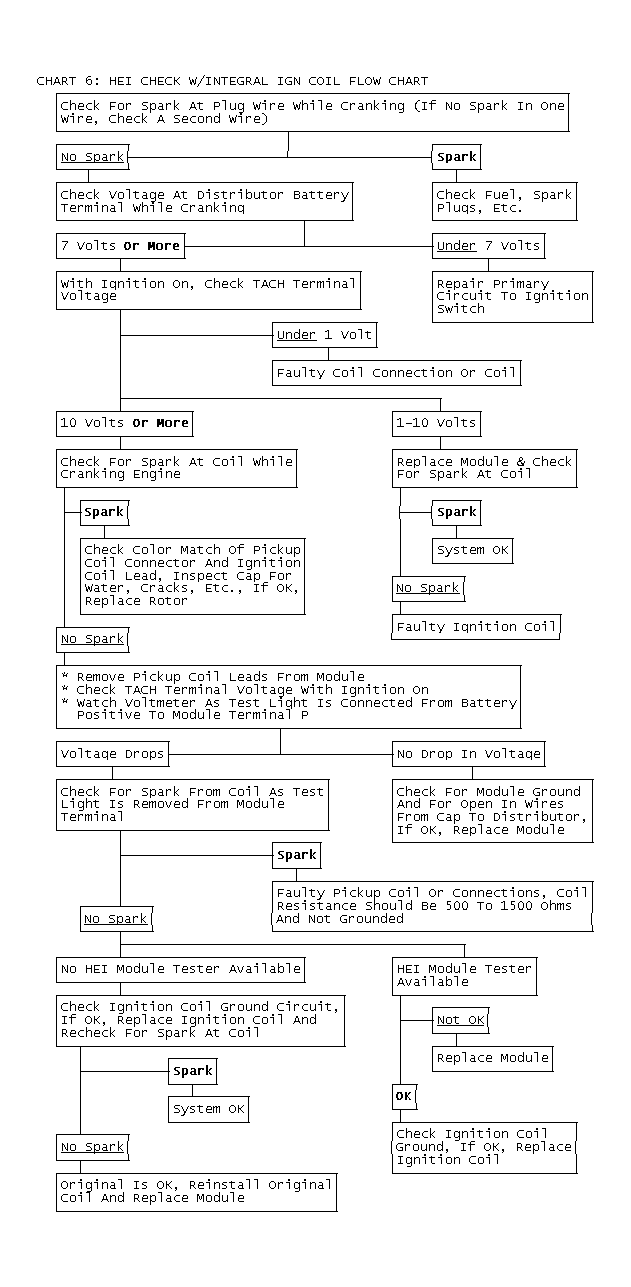

Fig 1: Chart 6: HEI Check W/Integral Ign Coil Flow Chart

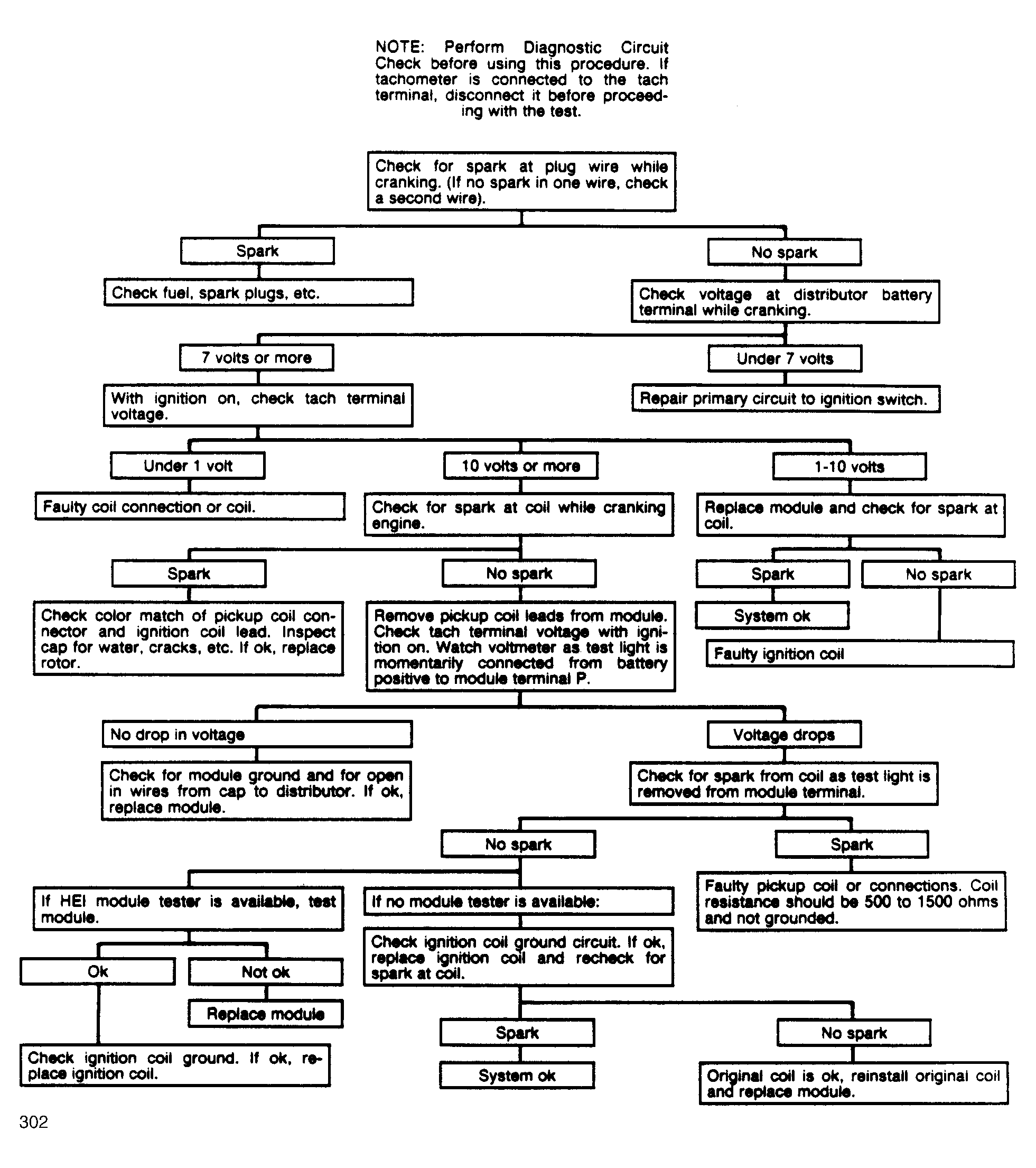

Fig 2: Chart 6: HEI Check W/Integral Ign Coil Flow Chart
