Secondary Lockout

  1. Hold choke valve wide open by pulling out (counterclockwise) on intermediate choke lever. See Fig 1.
  2. Open throttle lever until end of secondary actuating lever is opposite toe of lockout lever.
  3. Measure specified clearance between end of actuating lever and toe of lockout lever. Measurement can be checked using a drill or pin gauge of specified size.
  4. To adjust, bend lockout lever tang contacting fast idle cam.

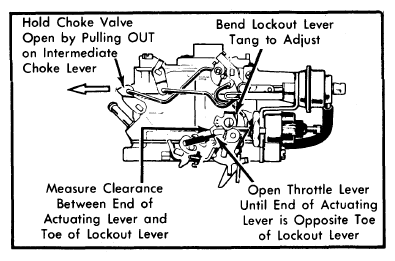

    Fig 1: Adjusting Secondary Throttle Lockout
    G09315728Courtesy of AMERICAN MOTORS/RENAULT CORP.
