In-Line Fuses

Toronado, 88 and 98 models have 2 25 amp. fuses near the fuse block to protect the theft deterrent system.

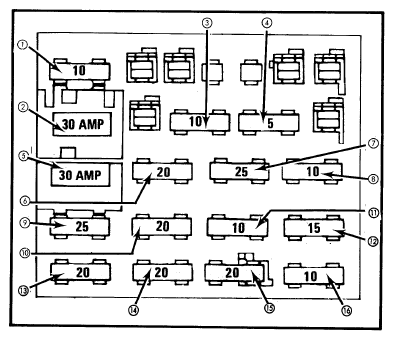

Fig 1: Cutlass Ciera, Firenza & Omega Fuse Block
G09358678Courtesy of GENERAL MOTORS COMPANY
