Mini Fuse Block Circuits

- 3 Amp. Fuel Injector.
- 3 Amp. Fuel Injector.
- 3 Amp. Fuel pump cranking circuit.
- 20 Amp. ECS battery fuse.
- 10 Amp. MDA ignition fuse.
- 10 Amp. Fuel pump fuse.
- 15 Amp. ECS ignition fuse.
- Not used.

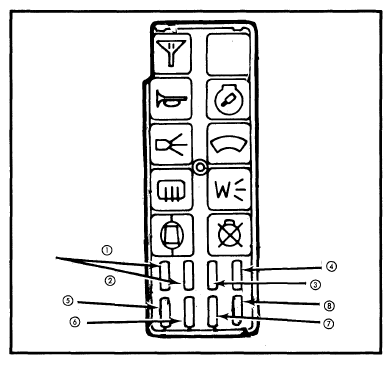

Fig 1: Mini Fuse Block Circuits
Courtesy of GENERAL MOTORS COMPANY
