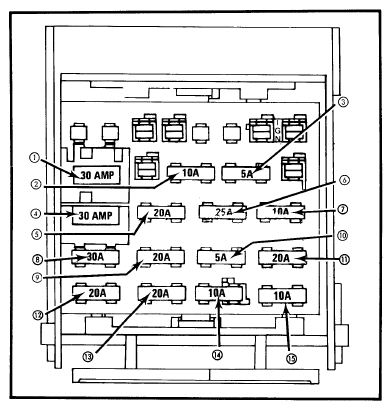

CIMARRON Fuse Block Circuits
- - 30 Amp.
Circuit Breaker. Power door locks, power seats and rear window defogger.
- - 10 Amp. (Red)
Radio and cruise control.
- - 5 Amp. (Tan)
Instrument panel lights and lights on reminder.
- - 30 Amp.
Circuit Breaker. Power windows.
- - 20 Amp. (Yellow)
Courtesy lights, seat belt warning, clock radio, air conditioning, heater, horn, power door locks, trunk/tailgate release, rear courtesy light and rear wiper washer.
- - 25 Amp. (White)
Windshield wiper and washer.
- - 10 Amp. (Red)
Warning indicators, gauges, air conditioning, heater, seat belt warning, computer command control, rear window wiper/washer and defogger.
- - 30 Amp. (Lt. Grn.)
Heater and air conditioning.
- - 20 Amp. (Yellow)
Rear parking, marker and license lights, front parking and marker lights, digital clock and twilight sentinel.
- - 5 Amp. (Tan)
Vacuum pump.
- - 20 Amp. (Yellow)
Turn signals and back-up lights.
- - 20 Amp. (Yellow)
Choke heater and cooling fan.
- - 20 Amp. (Yellow)
Stop and hazard lights.
- - 10 Amp. (Red)
Electronic control module.
- - 10 Amp. (Red)
Electronic control module.
Courtesy of GENERAL MOTORS COMPANY
