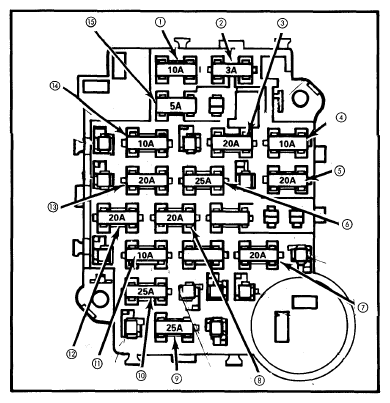

CADILLAC Fuse Block Circuits
- - 10 Amp. (Red)
Front side marker, cornering and ash tray lights.
- - 3 Amp. (Violet)
Cruise control and DFI brake switch.
- - 20 Amp. (Yellow)
Air conditioning compressor feed, ECC programmer and power module, generator indicator and rear window defogger relay coil.
- - 10 Amp. (Red)
Antenna motor feed.
- - 20 Amp. (Yellow)
ECC control head, stop light switch and hazard warning flasher.
- - 25 Amp. (White)
Opera, side marker rear, tail and license lights and tone generator.
- - 20 Amp. (Yellow)
Body courtesy lights, cigar lighter and electronic level control exhaust.
- - 20 Amp. (Yellow)
Coolant temperature indicator, instrument panel courtesy and compartment lights and cigar lighter.
- - 25 Amp. (White)
Rear window defogger.
- - 25 Amp. (White)
Windshield wipers and low washer fluid indicator.
- - 10 Amp. (Red)
Antenna relay coil.
- - 20 Amp. (Yellow)
Fuel gauge, seat belt warning chime and indicator, coolant temperature, low brake fluid and oil pressure indicators, tone generator and electronic level control compressor.
- - 20 Amp. (Yellow)
Turn signal lights.
- - 10 Amp. (Red)
Back-up lights.
- - 5 Amp. (Tan)
Rheostat controlled instrument panel lights.
