Fuse Block
NOTE:

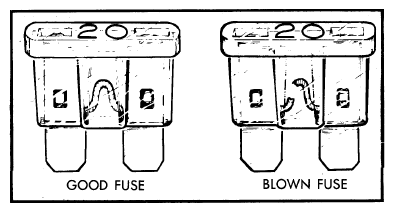

All General Motors vehicles except Chevette and T1000 use miniaturized plastic coated fuses. Fuse amperage is embossed on the top of the fuse. Fuses are also color coded to the amperage as shown in the following chart.
Fuse block is located on cowl under left side of instrument panel on all models except Century and Skylark. Fuse block on these models is located under right side of instrument panel.
MINI FUSE COLOR TABLE
| Fuse (Amps) | Color Stripe |
|---|---|
| 3 | Violet |
| 5 | Tan |
| 7.5 | Brown |
| 10 | Red |
| 20 | Clear/Yellow |
| 25 | White |
