Doors Unlock Automatically Do Not Lock Automatically: Buick

  1. With ignition on and transmission in "P", connect test lamp between ground and Lt. Blue/Black wire at module. If lamp is on, replace back-up light switch.
  2. If lamp is off, check for open in Black/Yellow wire between module and motor relay. Repair wire if necessary. If wire is good, replace module printed circuit board.

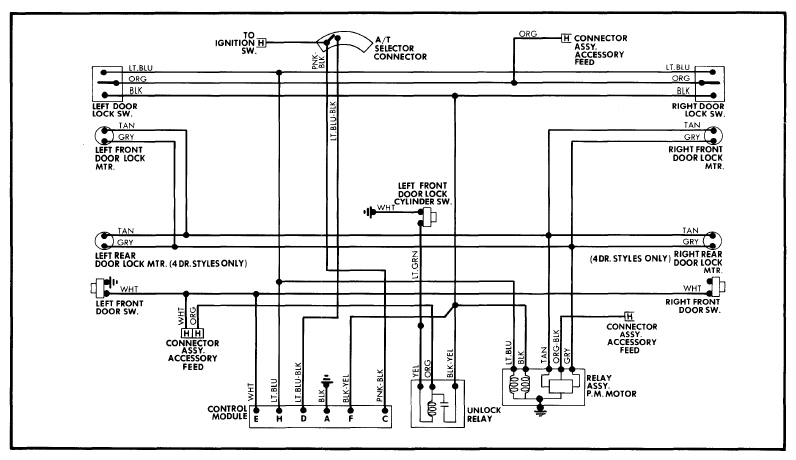

    Fig 1: Buick Automatic Door Lock Wiring Diagram
    G09358729Courtesy of GENERAL MOTORS COMPANY
