Ambient Sensor

Mounted in the programmer, this sensor is exposed to ambient (intake) air through a hole in the module

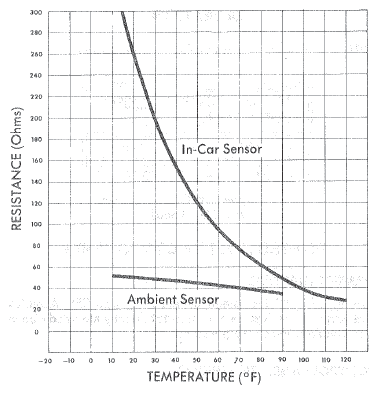

Fig 1: Resistance Graph of Sensors
G09314899Courtesy of GENERAL MOTORS COMPANY
