Control System Components: Aspirator

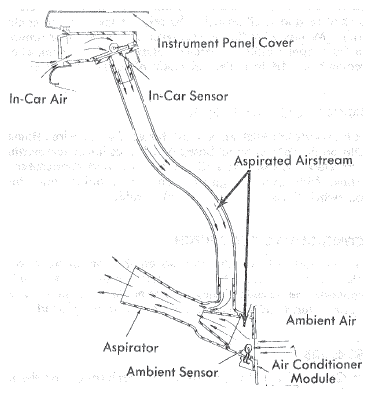

The aspirator delivers a small amount of in-car air to the in-car sensor to accurately sense in-car temperature. Air movement to and over the sensor is accomplished by the venturi principle. The aspirator is an integral part of the programmer chassis. See Fig 1.
