Water Pump
NOTE:
Some water pumps may have a reddish or greenish coolant stain at vent hole below shaft. This is a normal condition and water pump should not be serviced unless it is obviously leaking with the engine running.
| Key | Size | Ft. Lbs. |
|---|---|---|
| A | 3/8-16x13/8 | 22 Ft. Lbs. |
| B | 1/4-20x11/8 | 70 INCH Lbs. |
| C | 5/16-18x11/4 | 15 Ft. Lbs. |
Overhaul of water pump on all models except Seville is possible only if special tool kit is used. Tool kit and overhaul parts kits are available. Water pump on Seville should not be overhauled if defective. It must be replaced.

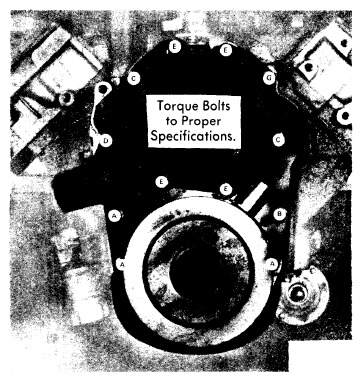

| Key | Size | Ft. Lbs. |
|---|---|---|
| A | 3/8-16x3/4 | 35 Ft. Lbs. |
| B | 3/8-16x | 35 Ft. Lbs. |
| C | 5/16-18x11/2 | 22 Ft. Lbs. |
| D | 5/16-18x21/2 | 22 Ft. Lbs. |
| E | 1/420x11/4 | 70 INCH Lbs. |
| G | 5/16-18x11/2 | 22 Ft. Lbs. |
