Wiring Diagrams

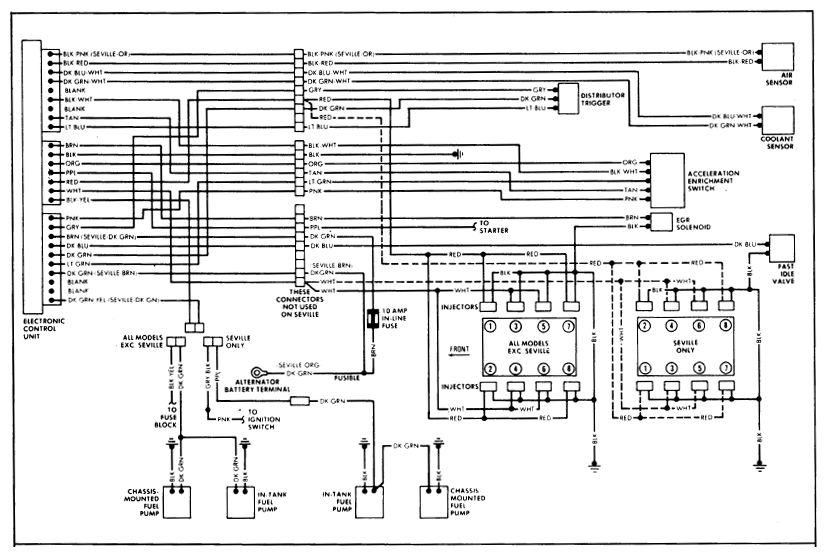

Fig 1: 1975-77 Electronic Fuel Injection Wiring Diagram
Courtesy of GENERAL MOTORS COMPANY

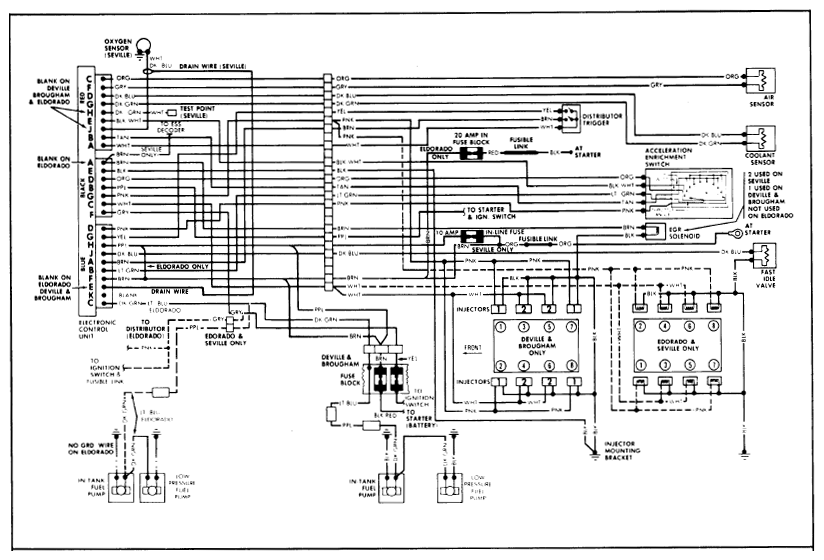

Fig 2: 1978-79 Electronic Fuel Injection Wiring Diagram
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
