6-Way Seats

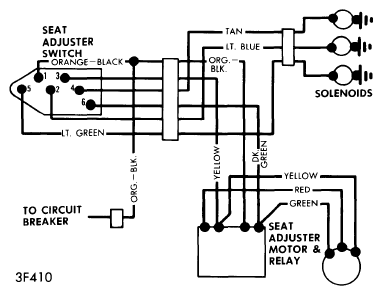

When control switch is actuated, current flows to transmission solenoid which controls the desired seat movement. The energizing of solenoid results in the solenoid plunger dog engaging the gear to rotate the control cable. This same switch action also supplies current to one of the motor field coils. This rotating motion of control cable actuates seat gearnuts which control direction of seat travel.
