Secondary Metering Rod

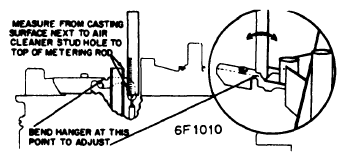

With air valve closed, check adjustment by measuring from top of each metering rod to top of air horn casting adjacent to air cleaner stud hole. If this dimension not correct (see Specification ), adjust by bending metering rod hanger at point shown (see Fig 1).
CAUTION:
Both metering rods must be adjusted evenly.
