Ring Installation

Chamfered inner corner of each compression ring must be toward top of piston.

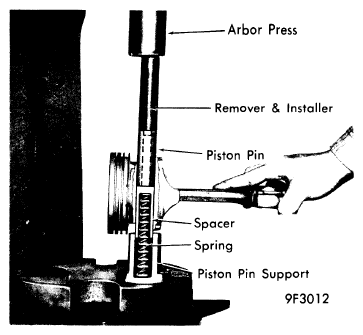

Fig 1: Piston Pin Installation
G09324163Courtesy of GENERAL MOTORS COMPANY

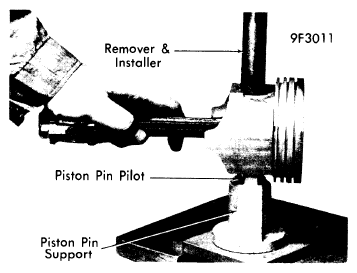

Fig 2: Piston Pin Removal
G09324164Courtesy of GENERAL MOTORS COMPANY
