System Checking

As explained above the ventilator valve is the critical point of the system. In time this valve may become restricted or stuck, due to the accumulation of blow-by and oil and water vapor deposits. The valve should be in proper working order at all times.

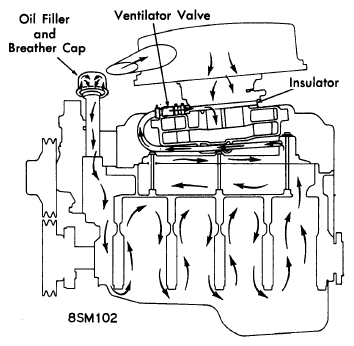

Fig 1: ENGINE VENTILATING SYSTEM (OPEN)
G09340463Courtesy of GENERAL MOTORS COMPANY
Fig 2: VENTILATOR VALVE
G09340464Courtesy of GENERAL MOTORS COMPANY
