Water Pump: Installation

Reverse removal procedure and observe the different screw sizes and torque specifications as shown in illustration.

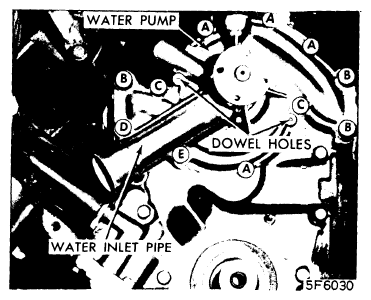

Fig 1: Water Pump Attaching Bolt Locations & Torque Specifications - 1965-67
G09324264Courtesy of GENERAL MOTORS COMPANY

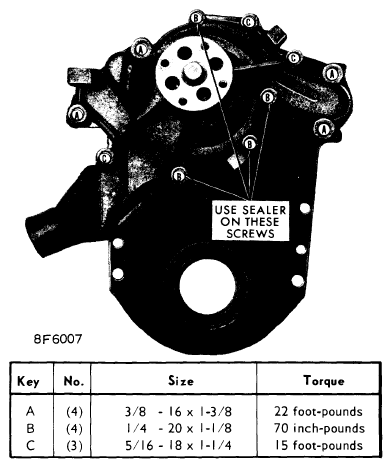

Fig 2: Water Pump Attaching Bolt Locations & Torque Specifications - 1968-73
G09324266Courtesy of GENERAL MOTORS COMPANY

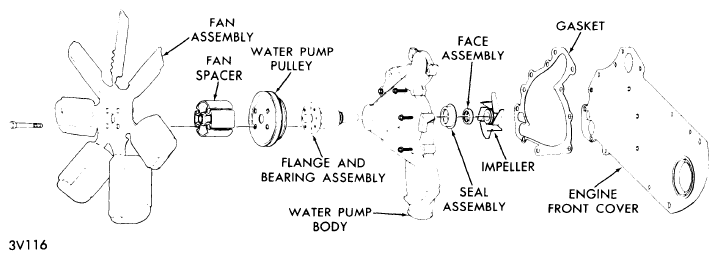

Fig 3: 1968-73 Water Pump Disassembled
G09324265Courtesy of GENERAL MOTORS COMPANY
