Installation Procedure

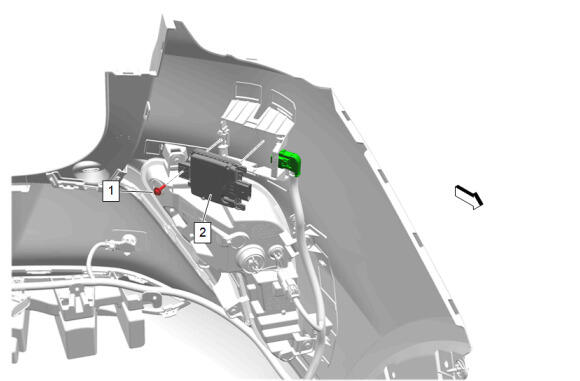

  1. GM5988865

    Side Object Sensing Alert Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Side Object Sensing Alert Module Bolt (1) - Install and tighten - Fastener Specifications
  3. Connect the electrical connector.

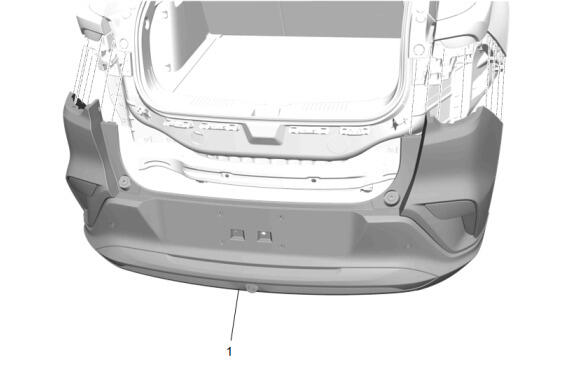

  4. GM5988742

    Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation

  5. Perform the necessary programming and setup procedure: Control Module References
