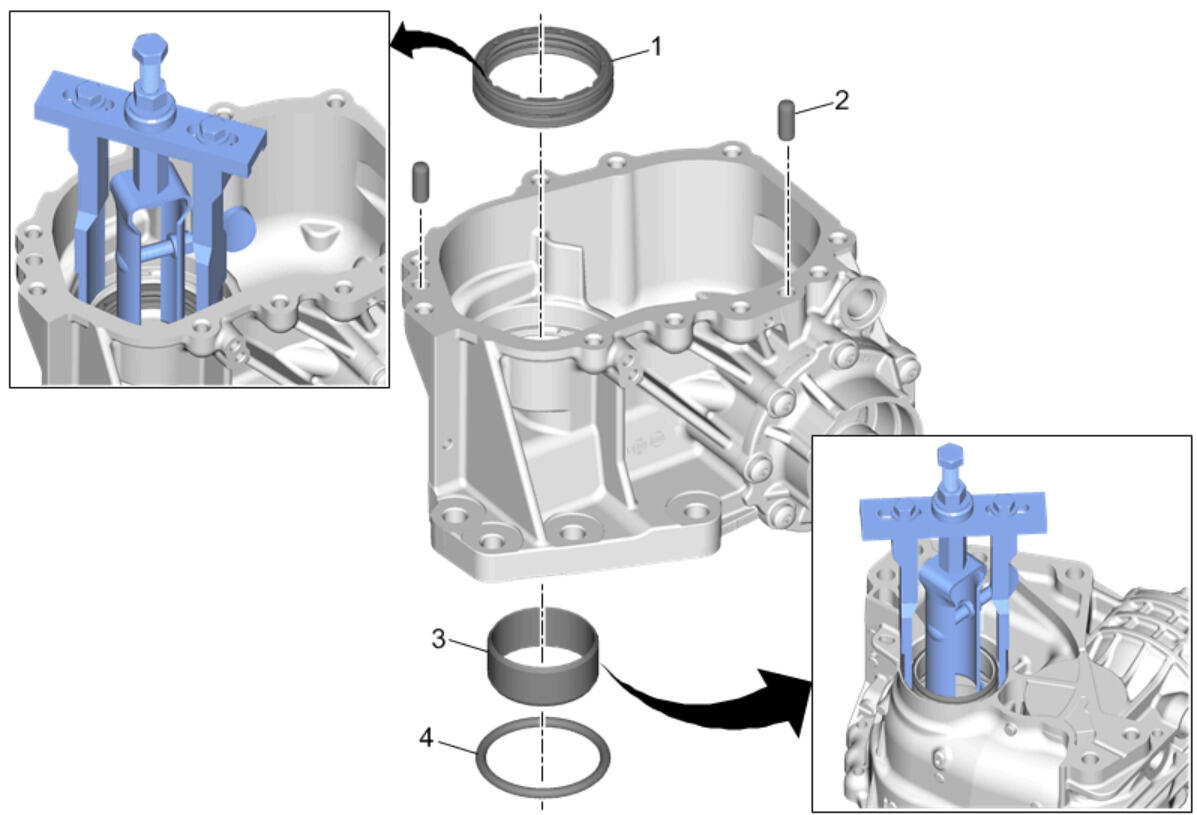

Power Transfer Unit Alignment Sleeve, Face Seal and Input Shaft Seal Removal

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
1	Power Transfer Unit Input Shaft Seal - Front Procedure Remove and DISCARD the seal. Special Tools DT-26941 Bushing and Bearing Remover DT-45124 Removal Bridge Equivalent regional tools:Special Tools
2	Power Transfer Unit Locating Pin [2x]
3	Power Transfer Unit Alignment Sleeve Procedure Discard the alignment sleeve if removed. Install a NEW sleeve during assembly. Special Tools DT-44380 Differential Bearing Puller DT-45124 Removal Bridge DT-45124 - 9 Puller Legs Equivalent regional tools:Special Tools
4	Power Transfer Unit Face Seal Procedure Remove and DISCARD the seal.
