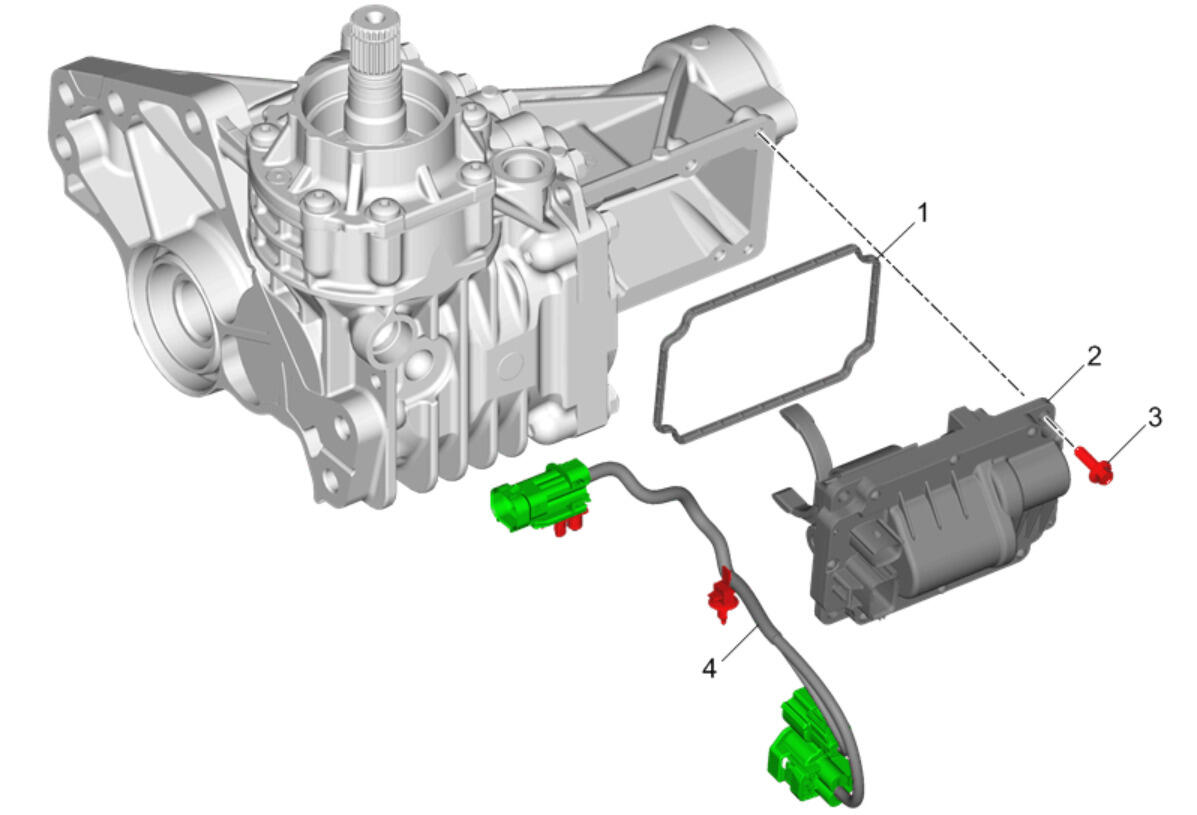

Power Transfer Unit Actuator, Seal and Bolt Installation
NOTE:
Callout items in the following chart represent components shown in graphic above.
Power Transfer Unit Actuator, Seal and Bolt Installation
| Callout | Component Name |
|---|---|
| 1 | Power Transfer Unit Shift Actuator Seal Procedure Install a NEW seal. |
| 2 | Power Transfer Unit Shift Actuator |
| 3 | Power Transfer Unit Shift Actuator Bolt [4x] Tighten 9 N.m (80 lb in) |
| 4 | Engine Wiring Harness Extension Harness |
