Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Install NEW exhaust gaskets (2).
1. Catalytic Converter Gasket (left) - Install NEW
2. Exhaust System Intermediate Gasket (right) - Install NEW

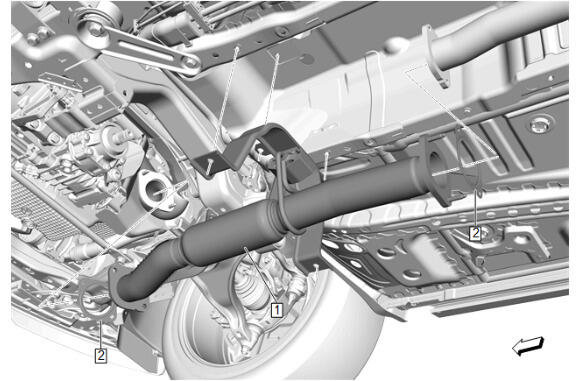

Exhaust Front Pipe (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

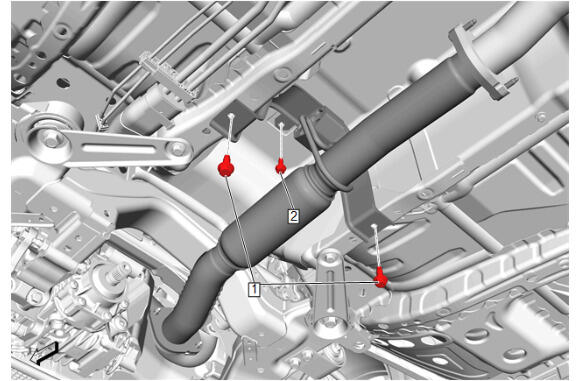

Engine Mount Brace Bolt (2) - Install and tighten 22 N.m (16 lb ft)
Exhaust Hanger Bracket Bolt (1) - Install and tighten [2x] 58 N.m (43 lb ft)
Courtesy of GENERAL MOTORS COMPANY

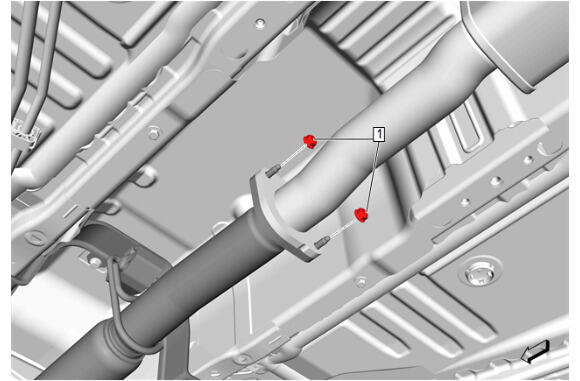

Catalytic Converter Nut (1) @ Exhaust Muffler - Install and tighten [2x] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

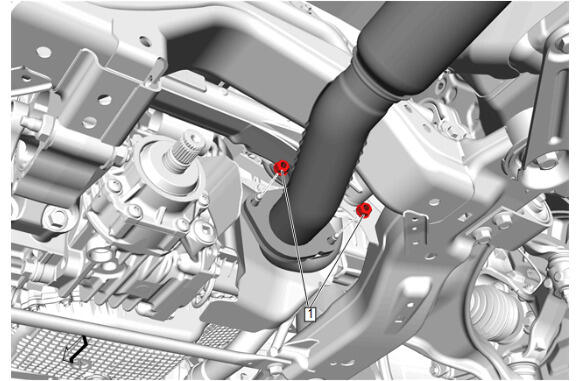

Catalytic Converter Nut (1) - Install and tighten [2x] 22 N.m (16 lb ft)
Propeller Shaft - Install - Propeller Shaft Replacement
Inspect the exhaust system for leaks.
