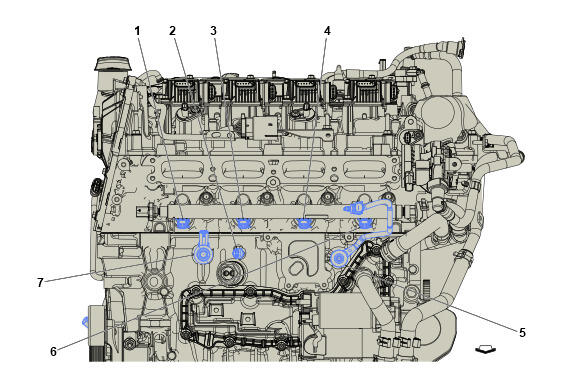

Engine Components - Fuel Rail
NOTE:
Callout items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. Q17A Fuel Injector 1 Q17A Fuel Injector 1 |
| 2. B34F Engine Coolant Temperature Sensor 6 B34F Engine Coolant Temperature Sensor 6 |
| 3. Q17B Fuel Injector 2 Q17B Fuel Injector 2 |
| 4. Q17C Fuel Injector 3 Q17C Fuel Injector 3 |
| 5. B68B Knock Sensor 2 B68B Knock Sensor 2 |
| 6. Q17D Fuel Injector 4 Q17D Fuel Injector 4 |
| 7. B68A Knock Sensor 1 B68A Knock Sensor 1 |
