Removal Procedure
- Air Inlet Grille Panel - Remove - Air Inlet Grille Panel Replacement

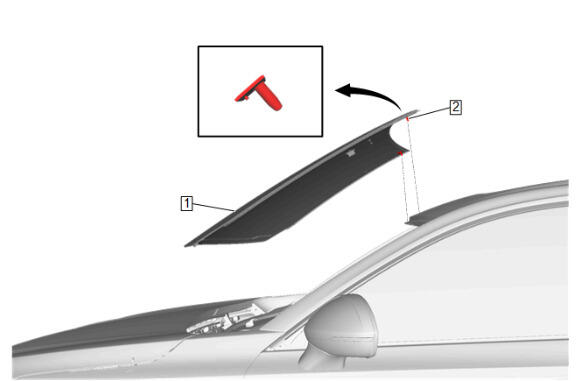

- Windshield Garnish Molding - Remove - Windshield Garnish Molding Replacement
- Front View Driver Information Camera Bracket - Remove - Front View Driver Information Camera Bracket Replacement
- NOTE:
Keep the cutting edge of the tool against the window.
Use J-24402 - A Glass Sealant Remover (1) or equivalent regional tools to remove the window.
- Leave a base of urethane on the pinchweld flange.
- The only suitable lubrication is clear water.
With the aid of an assistant, remove the windshield (1) and locating pin (2) from the vehicle.
