Removal Procedure
- Disable the SIR system. SIR Disabling and Enabling
- Steering Wheel - Remove - Steering Wheel Replacement (N5L) Steering Wheel Replacement (N5Q)

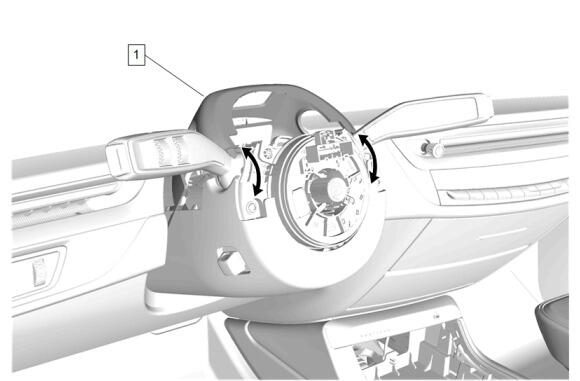

Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover.
- Instrument Panel Steering Column Upper Trim Cover (1) - Reposition

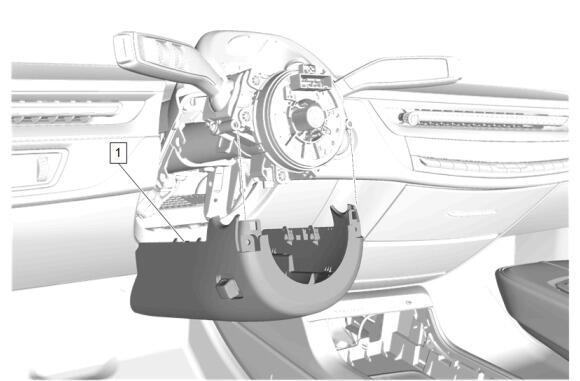

Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove [3x]
Instrument Panel Steering Column Lower Trim Cover (1) - Remove
- Disconnect the electrical connector, if equipped.
- NOTE:
Do NOT remove the bolt in the turn signal switch bracket band clamp. The turn signal switch bracket will need to be replaced if the bolt from the turn signal switch bracket band clamp is fully removed.

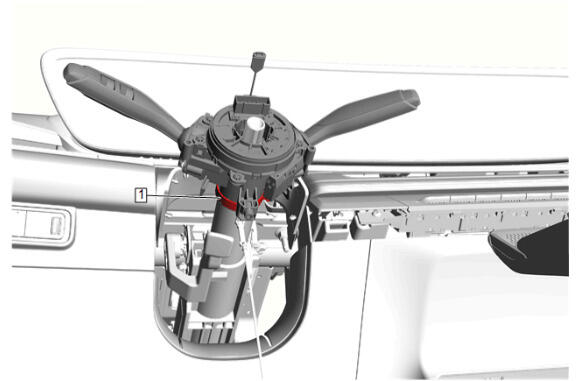

Loosen the turn signal switch bracket band clamp (1).
- Disconnect the electrical connector.

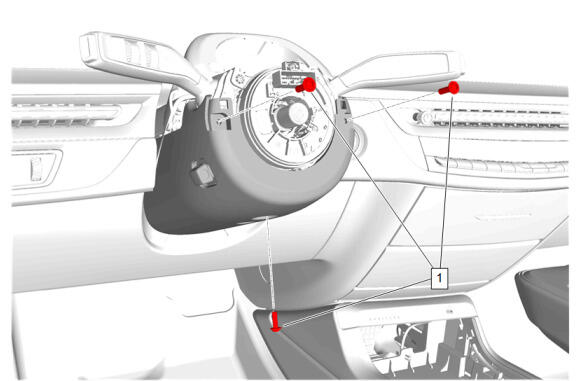

- Remove the turn signal switch bracket as an assembly.

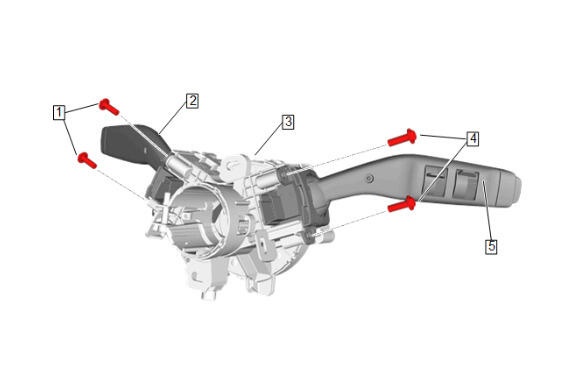

Turn Signal Switch Bolt (1) @ Steering Column Control Module (3) - Remove [2x]
- Turn Signal Switch (2) @ Steering Column Control Module (3) - Remove
- Automatic Transmission Electronic Control Bolt (4) @ Steering Column Control Module (3) - Remove [2x]
- Gear Shift Control Module (5) @ Steering Column Control Module (3) - Remove
Steering Column Control Module (1) - Remove
