Installation Procedure

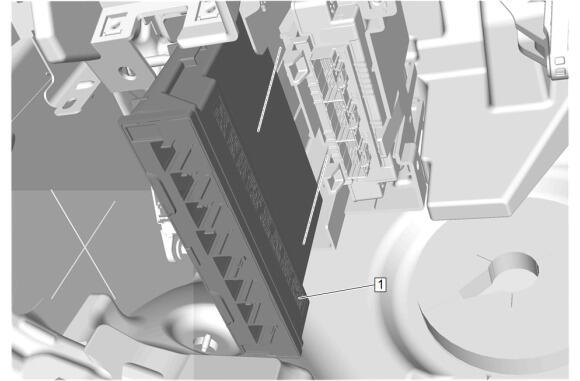

  1. GM6379392Courtesy of GENERAL MOTORS COMPANY

    Body Control Module (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connectors.
  4. Instrument Panel Lower Trim Panel Insulator - Left Side - Install - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
