Dual Charge Only Receptacle Replacement

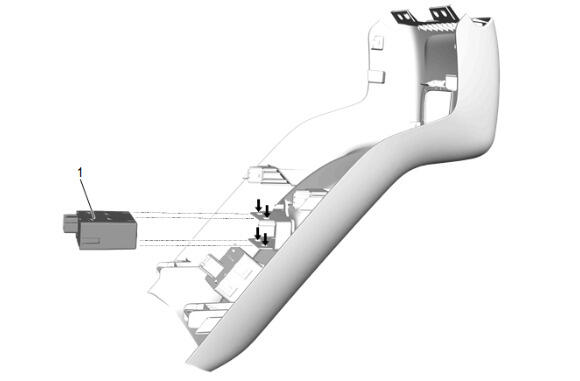

GM5573332Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Dual Charge Only Receptacle Replacement

Callout Component Name

Preliminary Procedure

  1. Battery Negative Cable Disconnection and Connection
  2. Front Floor Console Rear Trim Panel Replacement
1 Dual Charge Only Receptacle

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
